【GRECELL Portable Power Station 500W】

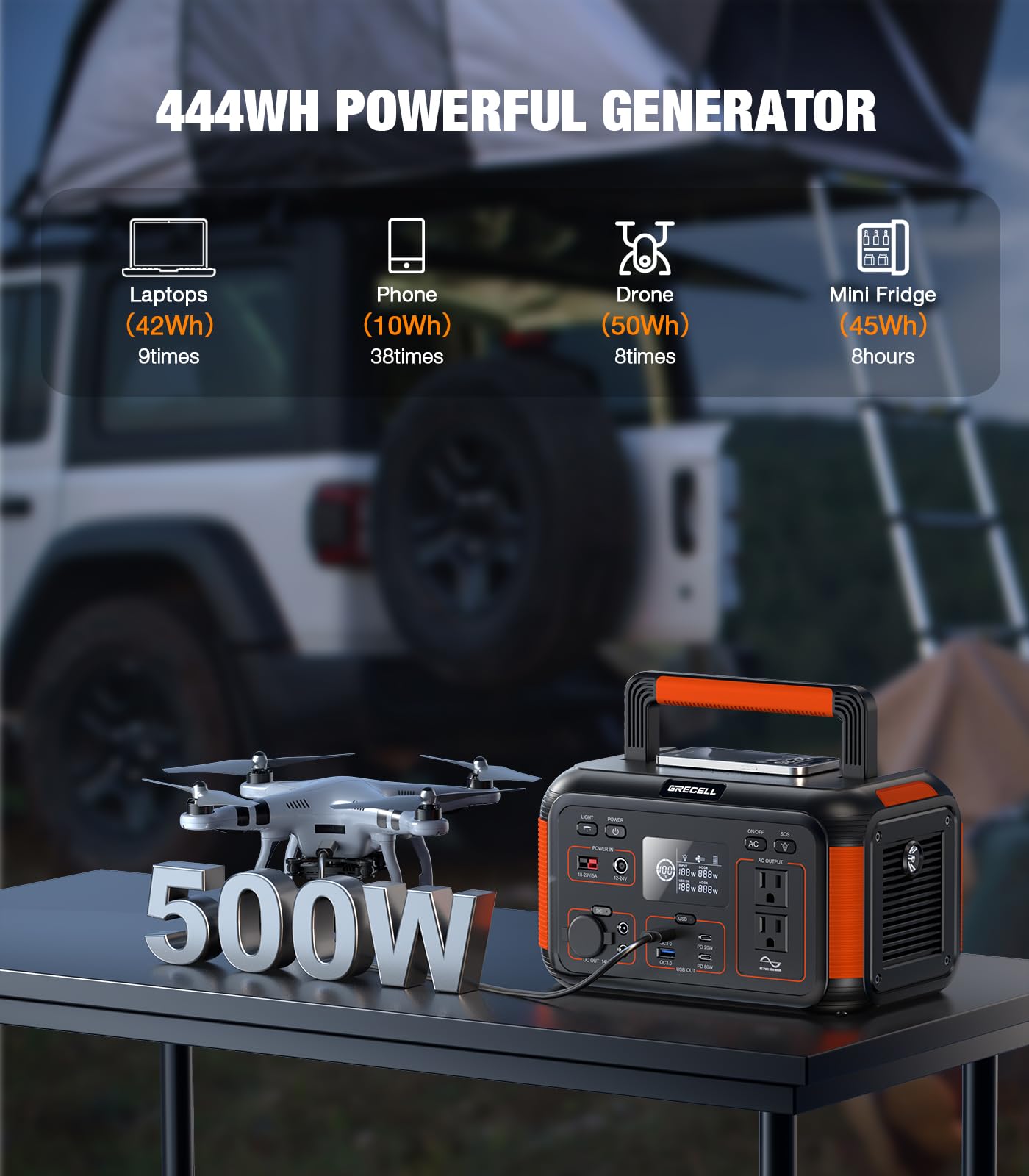

GRECELL power station supply has large 500W capacity (1000W surge) pure sine wave AC outputs and 440Wh capacity. Its outstanding features include high capacity, lightweight design (9.9 lbs) and superb portability. It is the perfect companion for camping, emergencies, traveling, RV trips and outdoor adventures
【24% High-Efficiency Conversion Rate】

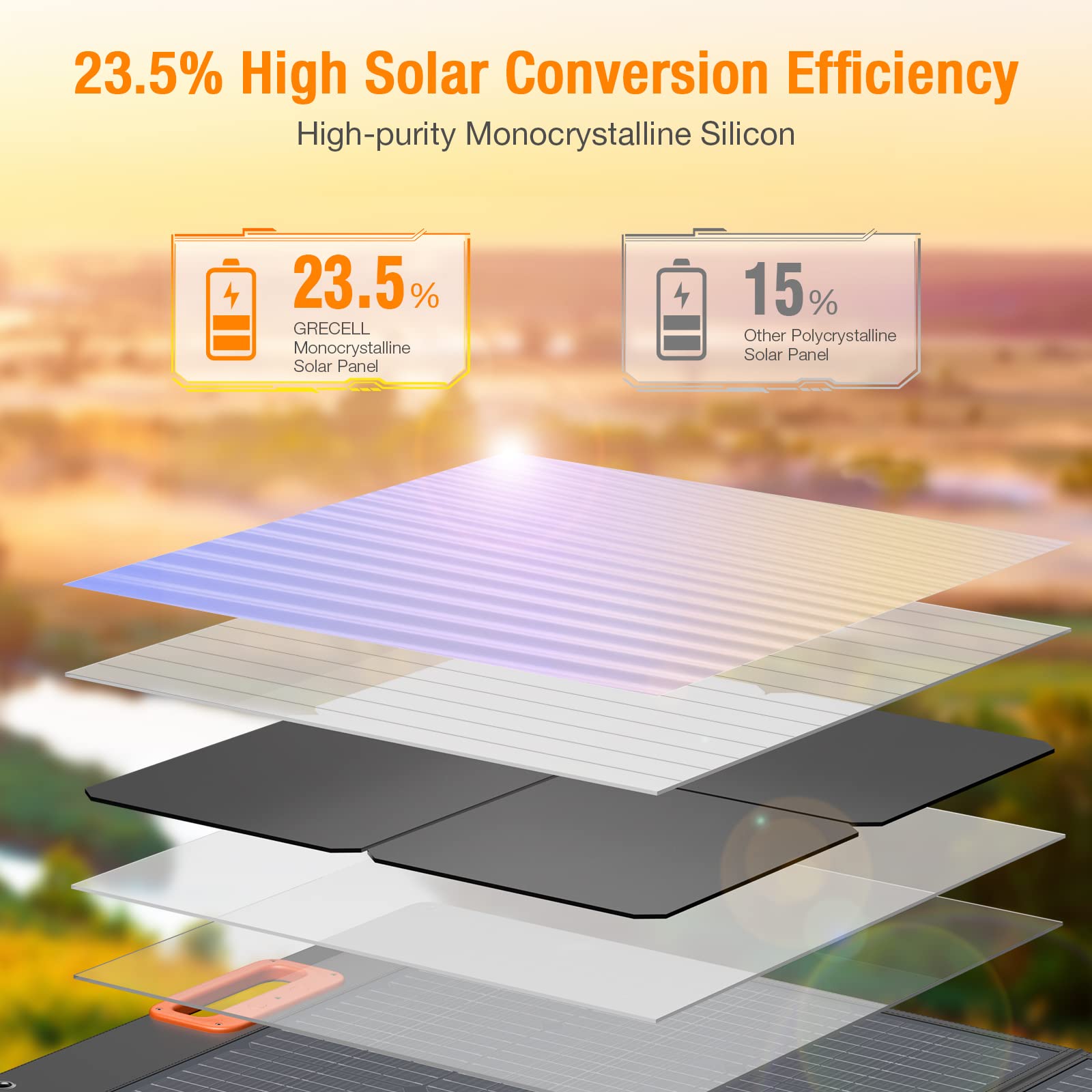

Portable solar panel kit has a built-in monocrystalline silicon solar cell that generates energy from sunlight with a conversion efficiency of up to 24%. Also capable of generating up to 100W and 21.5V of on-the-go power, it comes with 2 adjustable Kickstand for maximum sun exposure
【500W Portable Solar Generator 】

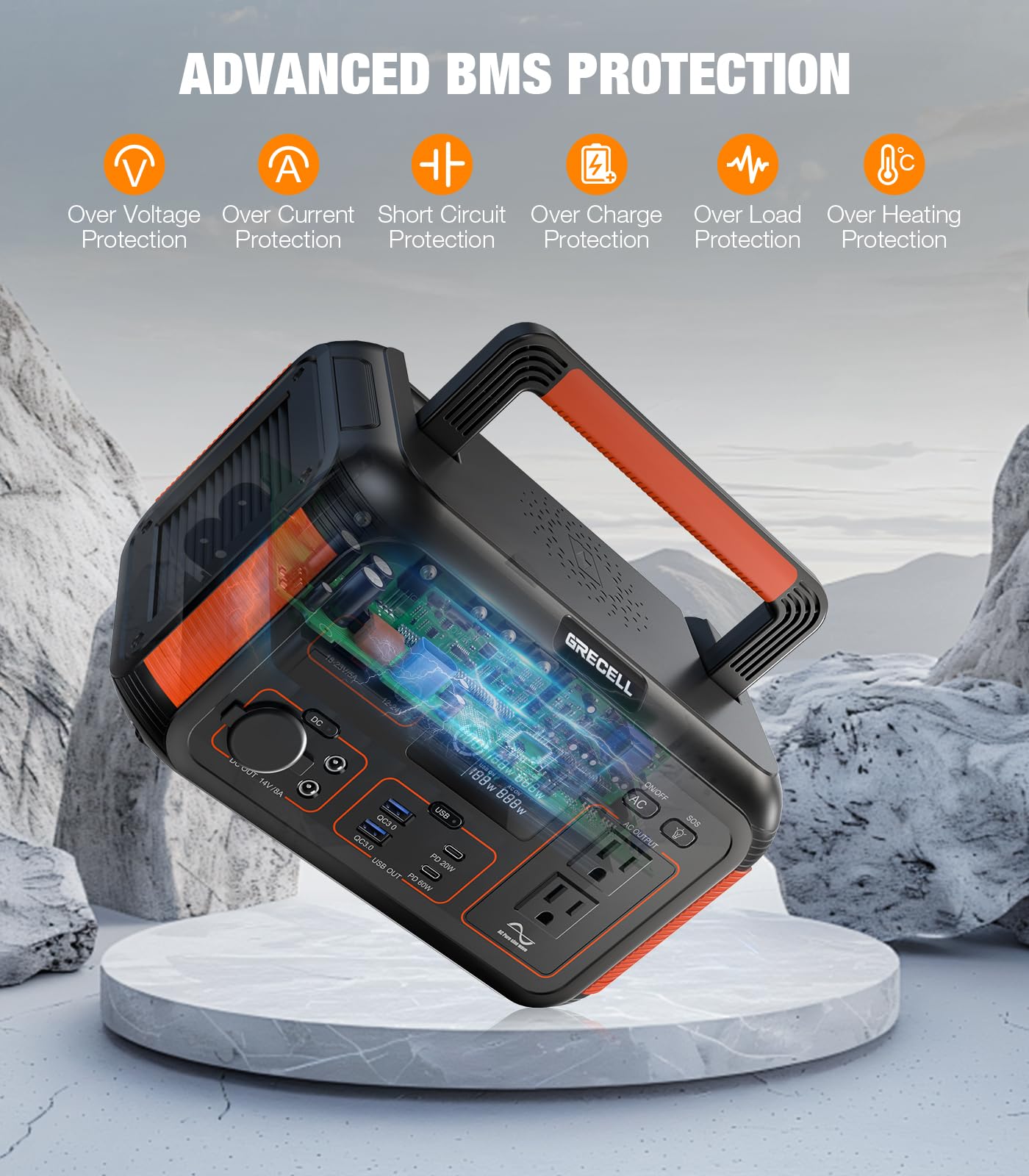

No need to worry about power outages, it’s equipped with a safe and reliable lithium battery. Meanwhile, the pure sine wave AC inverter can better protect your sensitive equipment, ensuring your safety and that of your equipment. It has over-current protection, short-current protection, over-discharge protection, over-charging protection, over-voltage protection, and over-heating protection
【Durable and IP67 Waterproof】
Foldable solar panel 100W made with advanced one-piece lamination technology and a long-lasting, ultra-lightweight ETFE surface, it is durable and can effectively extend the life of the solar panel. It has an IP67 waterproof rating to completely protect against dust ingress and can be submerged in water up to 0.5 meters deep for half an hour

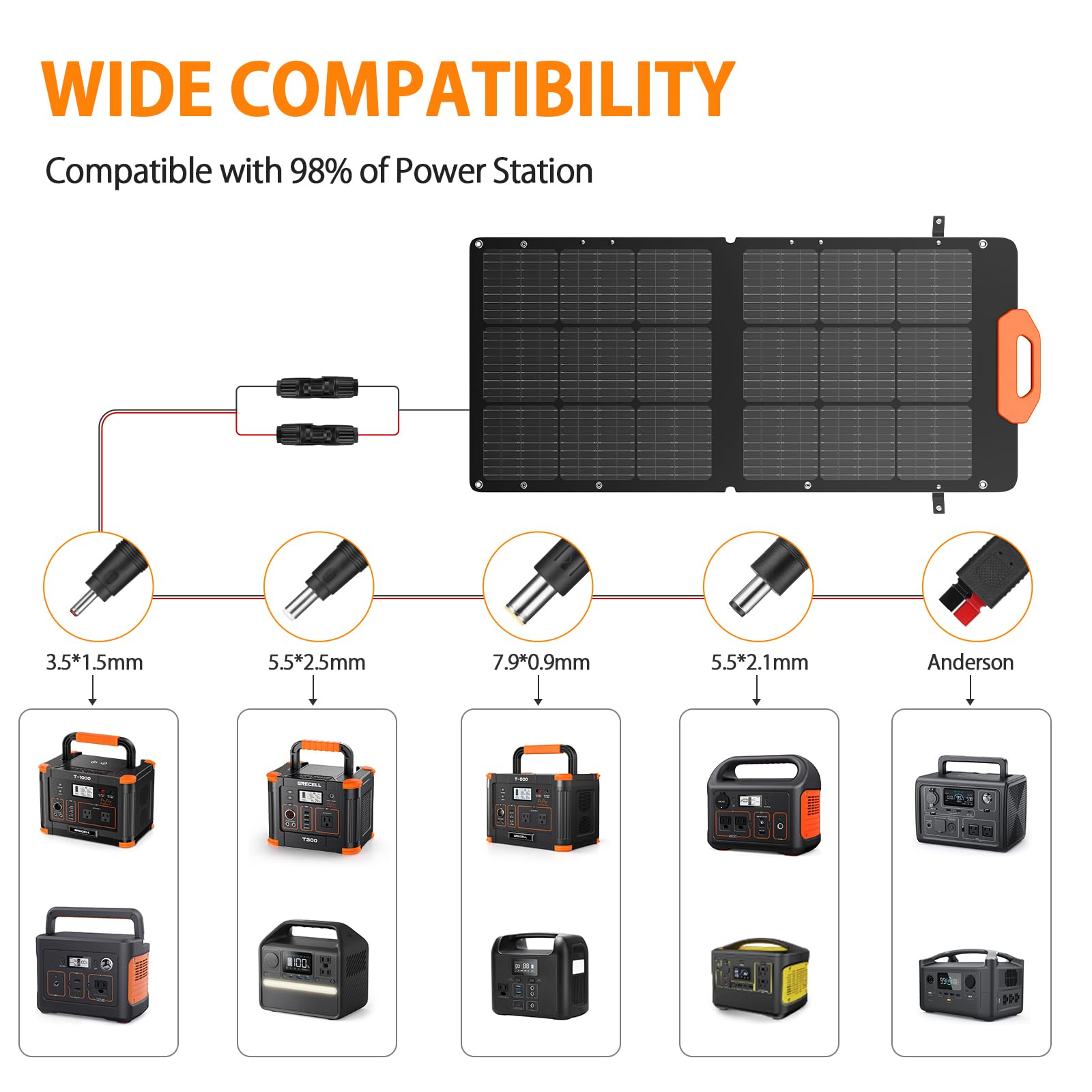

【100W Portable Solar Panel for Power Stations】
Grecell solar panel 100w are compatible with most power stations and solar generators, with connector (max current 25A), 8mm/5.5*2.5mm/3.5*1.35mm/5.5mm*2.1mm DC adapter/Anderson cable. Compatible with Jackery, Ecoflow, Bluetti, Paxcess, Suaoki, Flashfish and other solar power generators/portable power stations, perfect for camping and power outage backup
Specification of P500W Mini
| Part Number | P500 Mini |
| Wattage | 500 watts |
| Rated Capacity | 444Wh / 30000mAh |
| Voltage | 110 Volts |

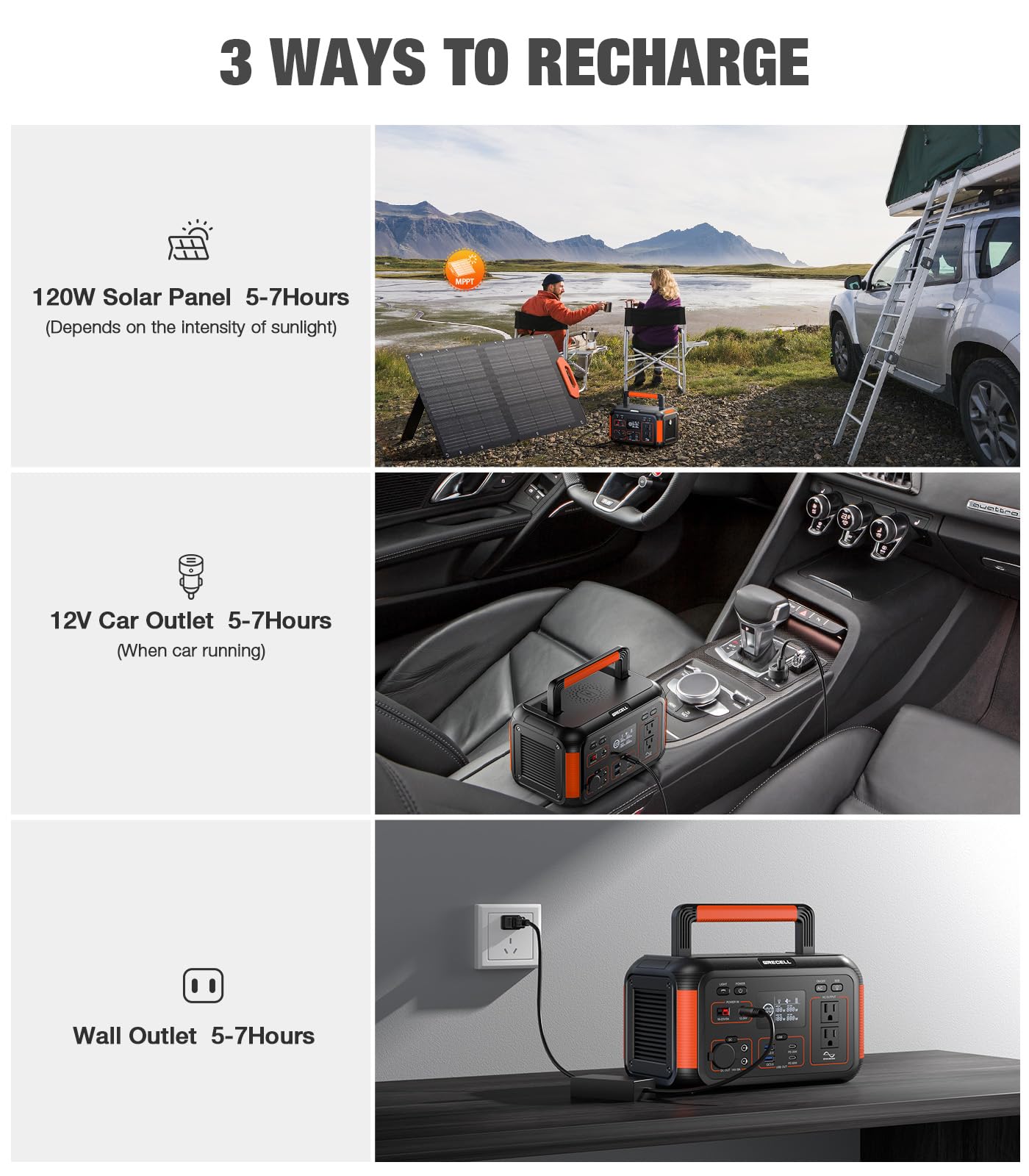

| Recharging Input Voltage | 12-24V |
| Recharging Input Power | 80W(Max) |
| AC/DC Adapter | AC 100-240V(50Hz/60Hz),DC 24V,5A |
| Solar Charge Input | 18-23V,Max.80W |
| Car Charger | DC 12V-24V.Max.80W |
| AC Output Voltage | 110V±10%/60Hz |
| Rated Output Power | 500W |
| Output Waveform | Pure Sine Wave |
| Overload Protection Power | 540±30W |

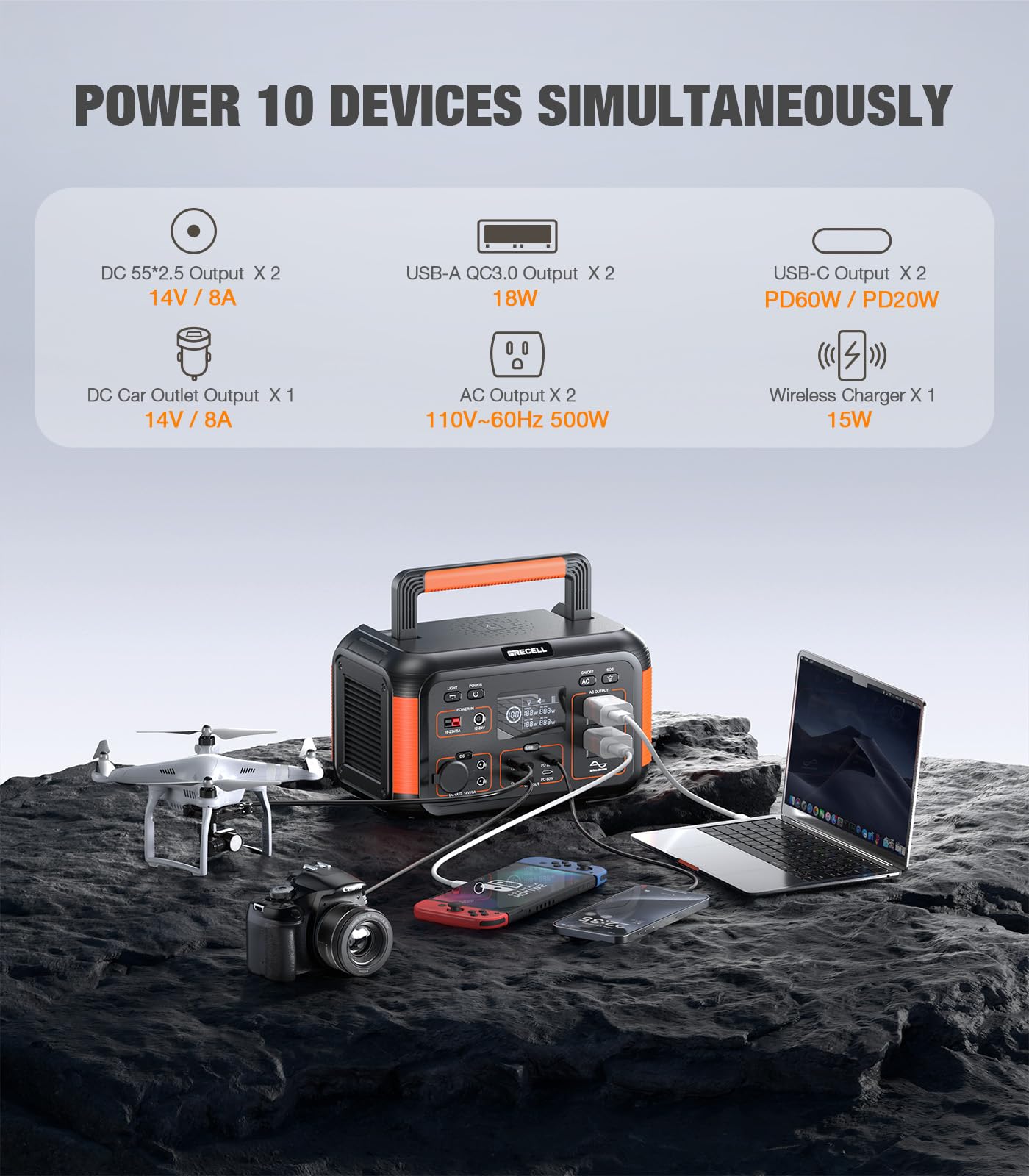

| Car Outlet Output | 12V~16.8V⎓8A |
| DC 5.5*2.5 Output | 12V~16.8V⎓8A |
| Wireless Charger | 15W |
| USB Output | QC3.0/18W |
| Type-C Output | PD 20W/PD 60W |
| Operating Temp | 14 to 104°F(-10 to 40°C) |
| Charging Temp | 32 to 104°F(0 to 40°C) |
| Storage Temp | -4 to 113°F(-20 to 45°C) |
| Item Weight | 9.6 pounds |
| Product Dimensions | (273*171*163)±1mm/10.75"L x 6.73"W x 6.42"H |
Specifications of 100W Solar Panel
|
Model Number |
SP-100 |
|
Material |
Monocrystalline Silicon Cell |
|
Connector Type |
MC4 |
|
Cell Efficiency |
23.50% |
|
Maximum Power |
100W |
|
Power Voltage |
20V |
|
Power Current |
5A |
|
Short Circuit Current |
5.25 A |
|
Open Circuit Voltage |
23.85V |
|
Storage Temperature |
-50°F to 95°F(10℃ to 35℃) |
|
Operating Temperature |
-4°F to 140°F(-20℃ to 60℃) |
|

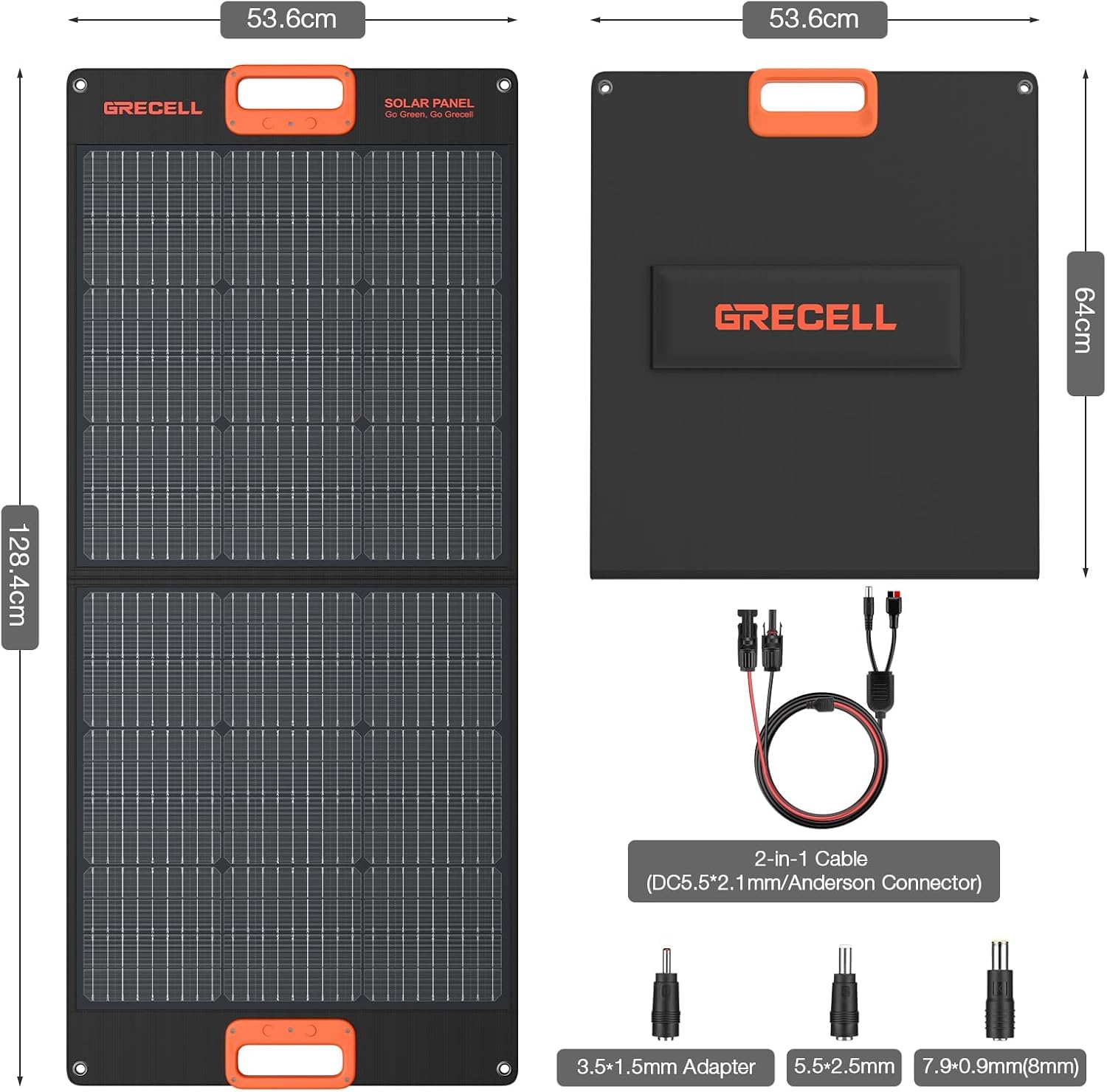

Folded Dimensions |
(640*536*65)±5mm / 25.2*21.1*2.5 inches |
|
Unfolded Dimensions |
(1284*536*5)±5mm / 50.55*21.1*0.2 inches |
|
Weight |
4.47±0.5kg/9.85lbs |
Specifications of S100W Solar Panel
|
Model
|
S100
|
|
Solar Panel
|
Monocrystalline Silicon Cell
|
|
Peak Power
|
100W
|
|
Material
|
600D Oxford Fabric
|
|
Surface Treatment
|
ETFE
|
|
Solar Energy Conversion Rate
|
23%
|
|
Peak Power
|
100W
|
|
Open Circuit Voltage
|
21.5V
|
|
Max Load Voltage
|
18.4V
|
|
Max Load Current
|
5.5A
|
|
Operating Temperature
|
-4℉ to 140℉ (-20℃ to 60℃)
|
|
Net Weight
|
9.92lbs / 4.5kg
|
|
Unfolded Size
|
1235*560*5mm / 48.62*22.05*0.2in
|
|
Folded Size
|
680*560*42mm / 26.77*22.05*1.65in
|
What You Get

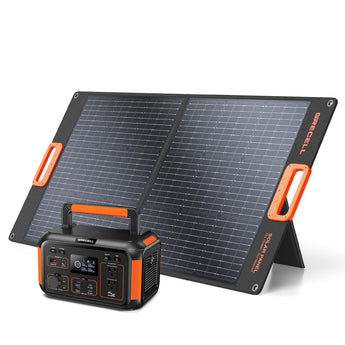

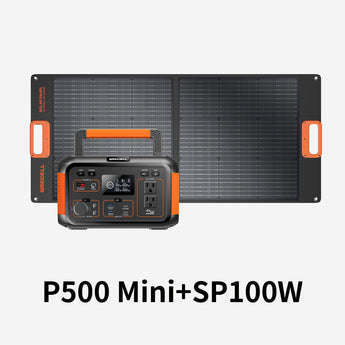

P500 Mini + SP100W
- 1 × 500W Portable Power Station
- 1 × 100W 20V Foldable Solar Panel
- 1 × 80W AC Adapter
- 1 × Car Charger to 7909 Cable
- 1 × MC4 to 7909 Cable
- 1 × MC-4 to Anderson Cable
- 1 × MC-4 to DC 5.5×2.1mm Cable
- 3 × DC Adapters (5.5×2.1mm to 5.5×2.5mm, 7.9×0.9mm, 3.5×1.5mm)
- 2 × User Manual

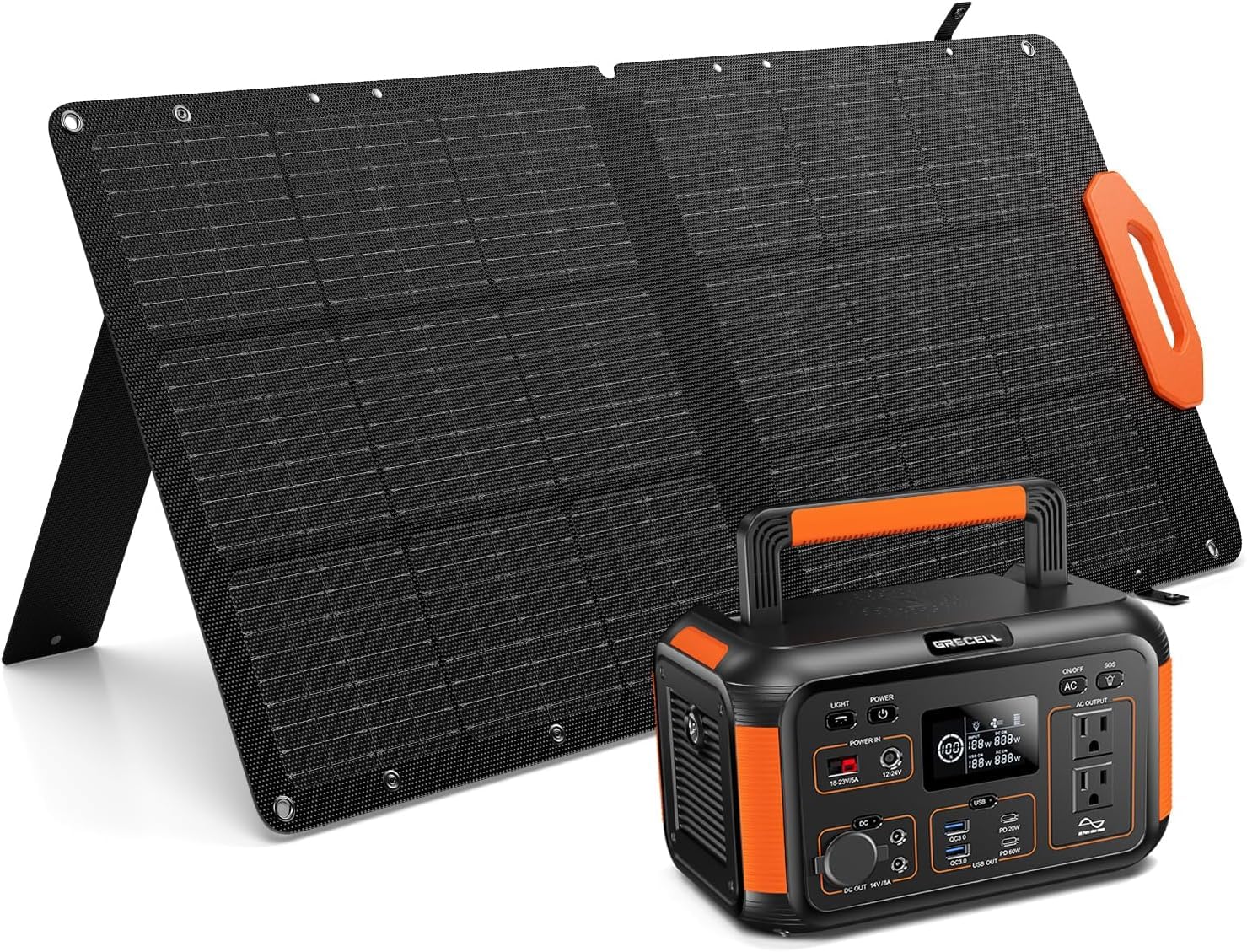

P500 Mini + S100W
- 1 × 500W Portable Power Station
- 1 × S100W Solar Panel
- 1 × AC Charging Cable
- 1 × MC4 Solar Charging Cable
- 1 × MC-4 to Anderson Cable
- 1 × MC-4 to DC 5.5×2.1mm Cable
- 3 × DC Adapters (5.5×2.5mm, 7.9×0.9/8mm, 3.5×1.5mm)
- 1 × Cable Storage Bag
- 2 × User Manual
