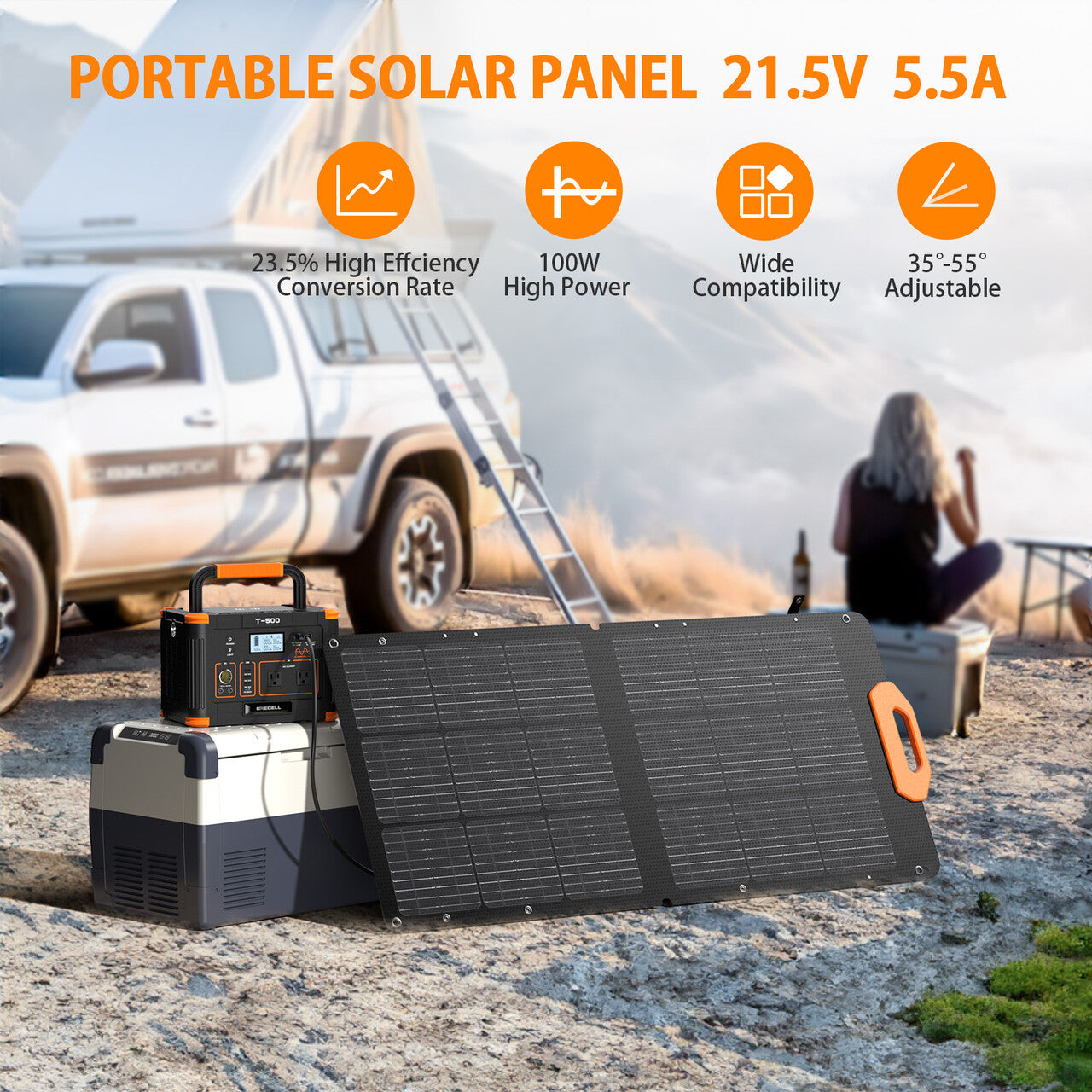

GRECELL 100W 21.5V Portable Solar Panel - Best Choice for Off-grid Camping and Home Backup
GRECELL 100W Portable Solar Panel – your ultimate source of renewable energy on the go. Engineered with high-efficiency monocrystalline solar cells, it boasts a solar conversion efficiency of up to 24%, perfect for outdoor enthusiasts and emergency power needs. Its durable ETFE-laminated case ensures longevity while maintaining a lightweight, foldable design. With an IP65 waterproof rating, it's your reliable companion for off-grid adventures. Get ready to power up your outdoor escapades with GRECELL!
Features Summary

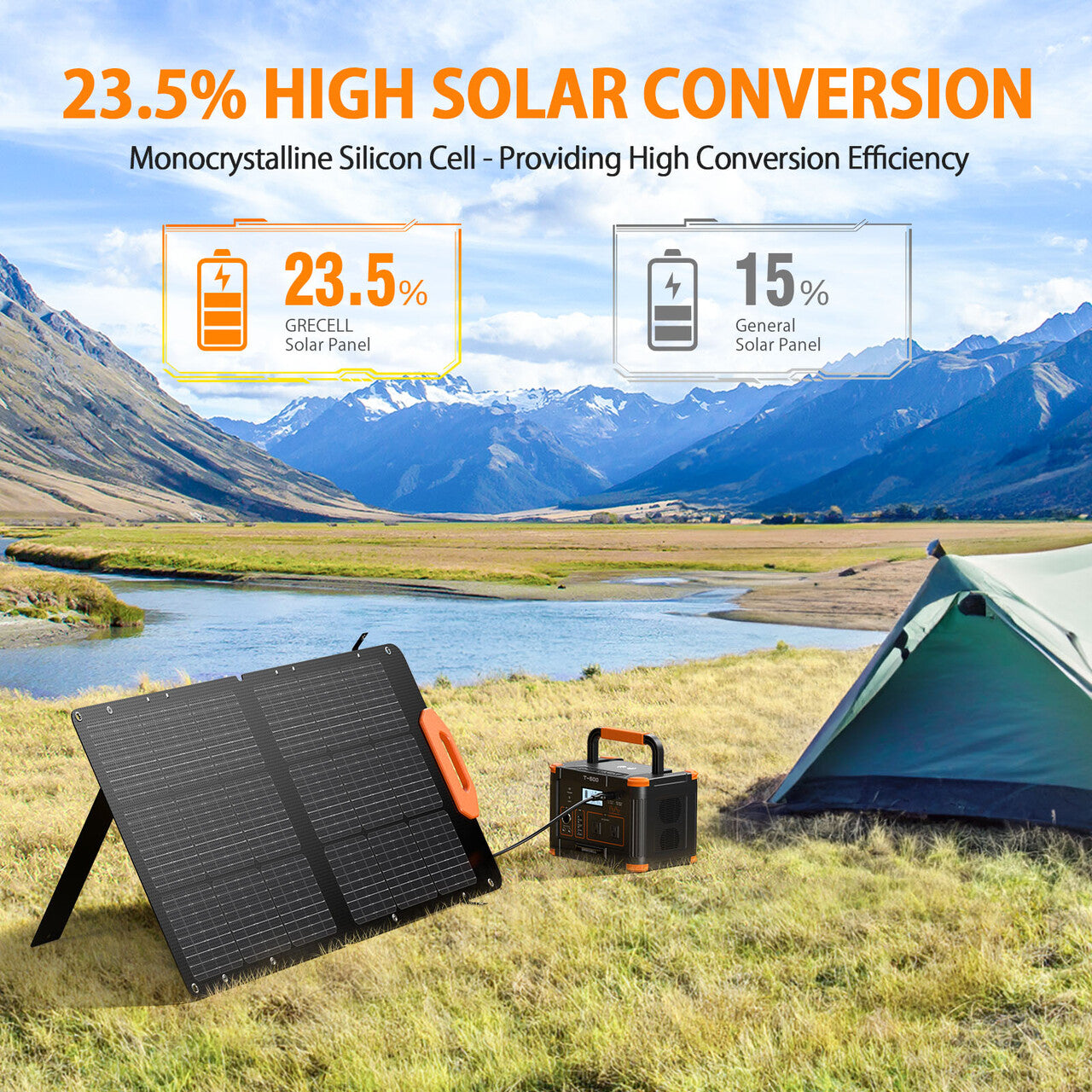

【24% High Efficiency Conversion Rate】
The solar panel uses monocrystalline silicon solar cells that have a higher conversion efficiency of 24% compared to other traditional panels. Converts more solar energy into usable electricity, maximising the amount of power generated within the available area.
【Foldable and Portable】
Portable solar panels for camping is foldable for easy portability and has a non-slip handle design. Folded size: 26.7 x 22 inches. Can be taken anywhere you want to go.

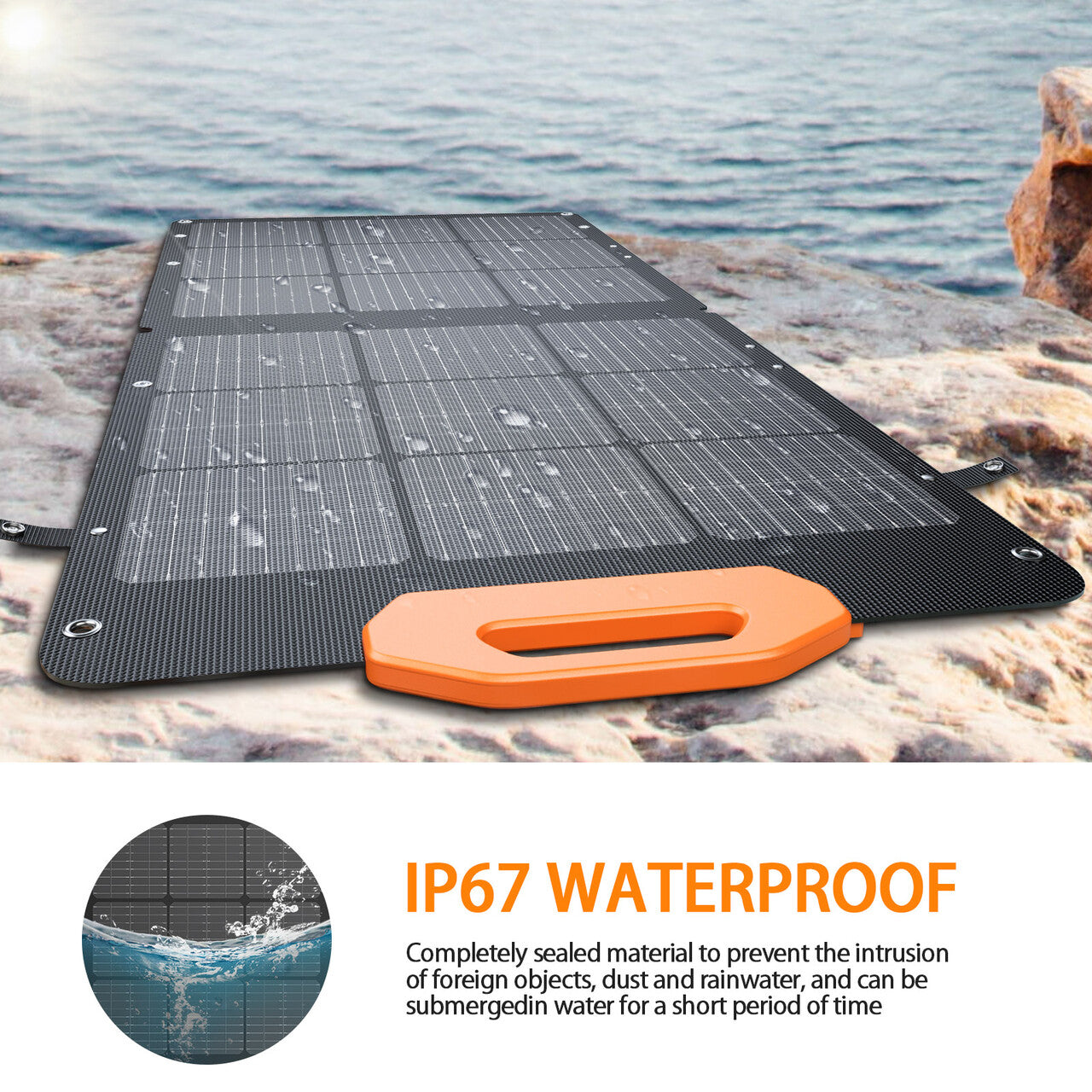

【Durable and IP67 Waterproof】
Foldable solar panel 100W made with advanced one-piece lamination technology and a long-lasting, ultra-lightweight ETFE surface, it is durable and can effectively extend the life of the solar panel. It has an IP67 waterproof rating to completely protect against dust ingress and can be submerged in water up to 0.5 meters deep for half an hour.

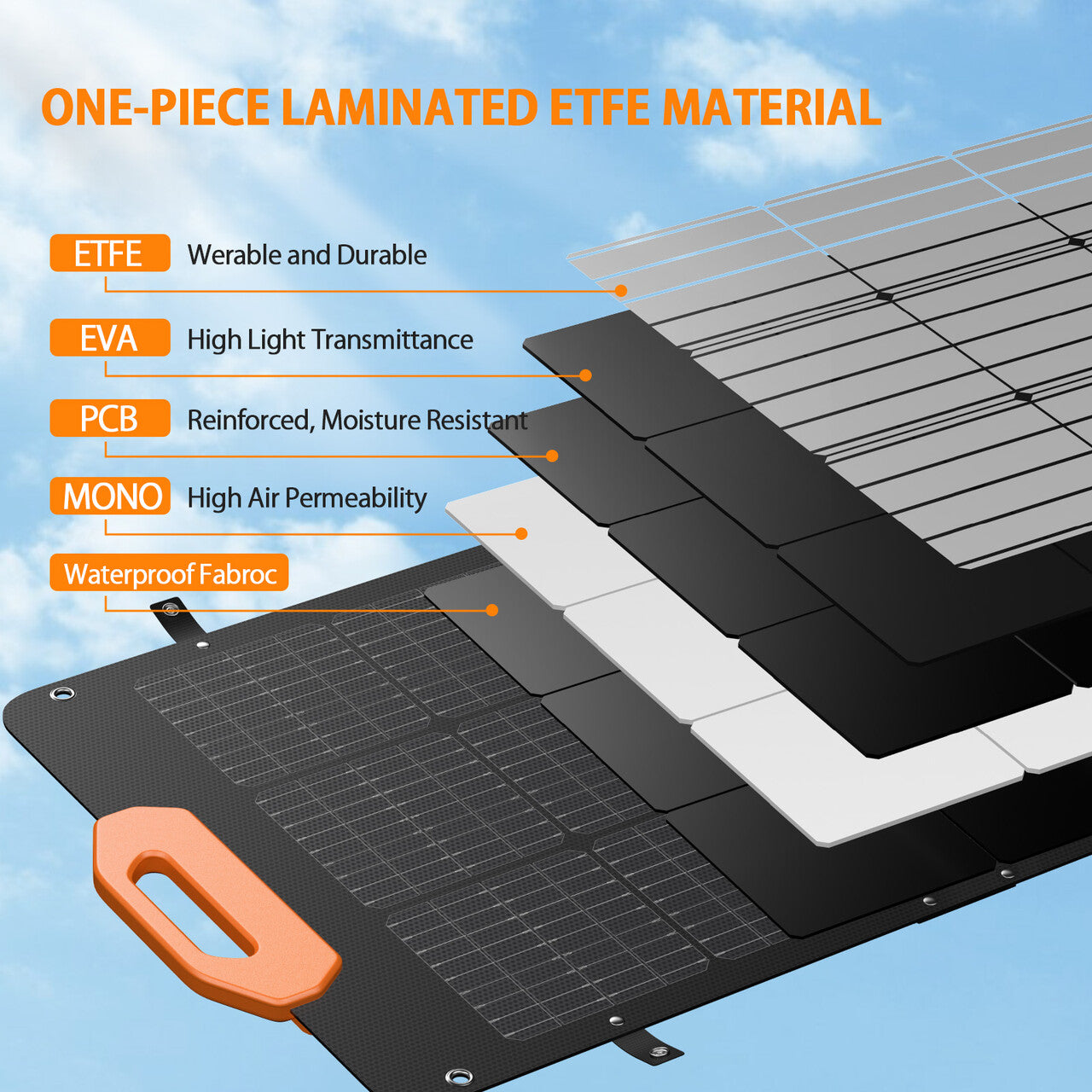

【ETFE One-Piece Laminate Material】
The surface is an ETFE one-piece laminate, which is durable, scratch-resistant, corrosion-resistant, waterproof, and has a light transmission rate of up to 97%.

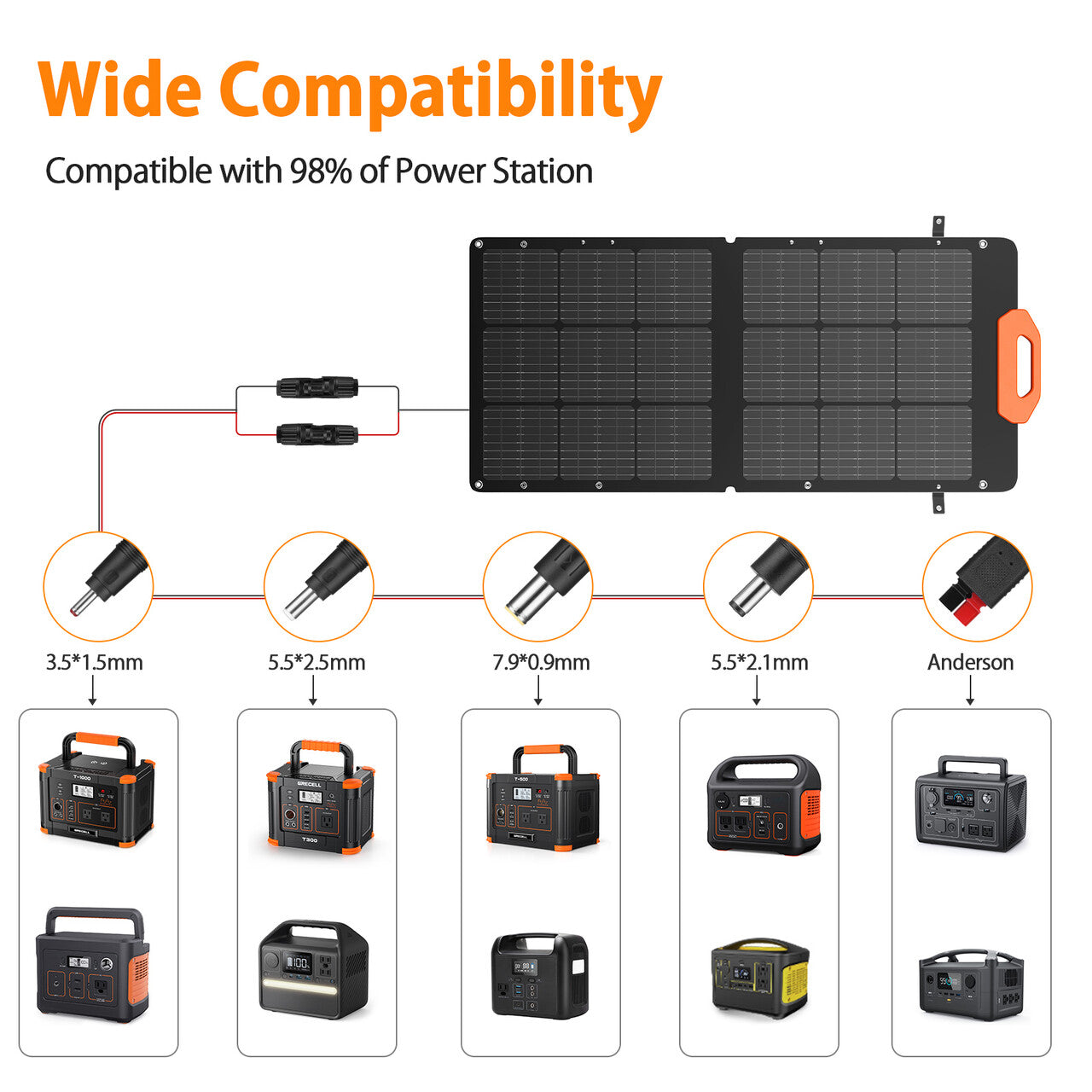

【5 Port Outputs Meet Most of Your Demands】
MC-4 to Anderson Cable for Jackery Explorer 1000, ROCKPALS 300W, Ecoflow, and other solar generators.
MC-4 to DC 5.5*2.1mm Cable for Rockpals 250W/350W/500W, FlashFish 200W/300W, PAXCESS ROCKMAN 200/300W/500W, PRYMAX 300W/SinKeu HP100 portable generator.
DC 5.5*2.5mm Adapter for Suaoki 400wh portable generator, GRECELL 300W power station
DC 7.9*0.9/8mm Adapter for Jackery Explorer 160/240/300/500/1000, Goal Zero Yeti 160/240/300, BALDR 200/330W, Anker 521 Power Station,BLUETTI EB 240.
DC 3.5*1.5mm Adapter for Suaoki S270, ENKEEO S155, Paxcess 100W, Aiper 150W, JOYZIS, MARBERO portable generator.
You can also buy an MC-4 to charge controller cable, a charge controller, a charge controller to Alligator clip cable separately, connecting them with our Solar Panel to provide endless power for 12-volt batteries (AGM, LiFePo4, lead-acid, gel, lithium, deep cycle batteries) of cars, boats, ships, trailers, and RVs.
MC-4 Output
MC-4 Output can deliver 25A(max)current while the DC port only carries 10A, charging faster and safer with our advanced technologies. Thanks to the parallel function, you can charge your devices in a shorter time.

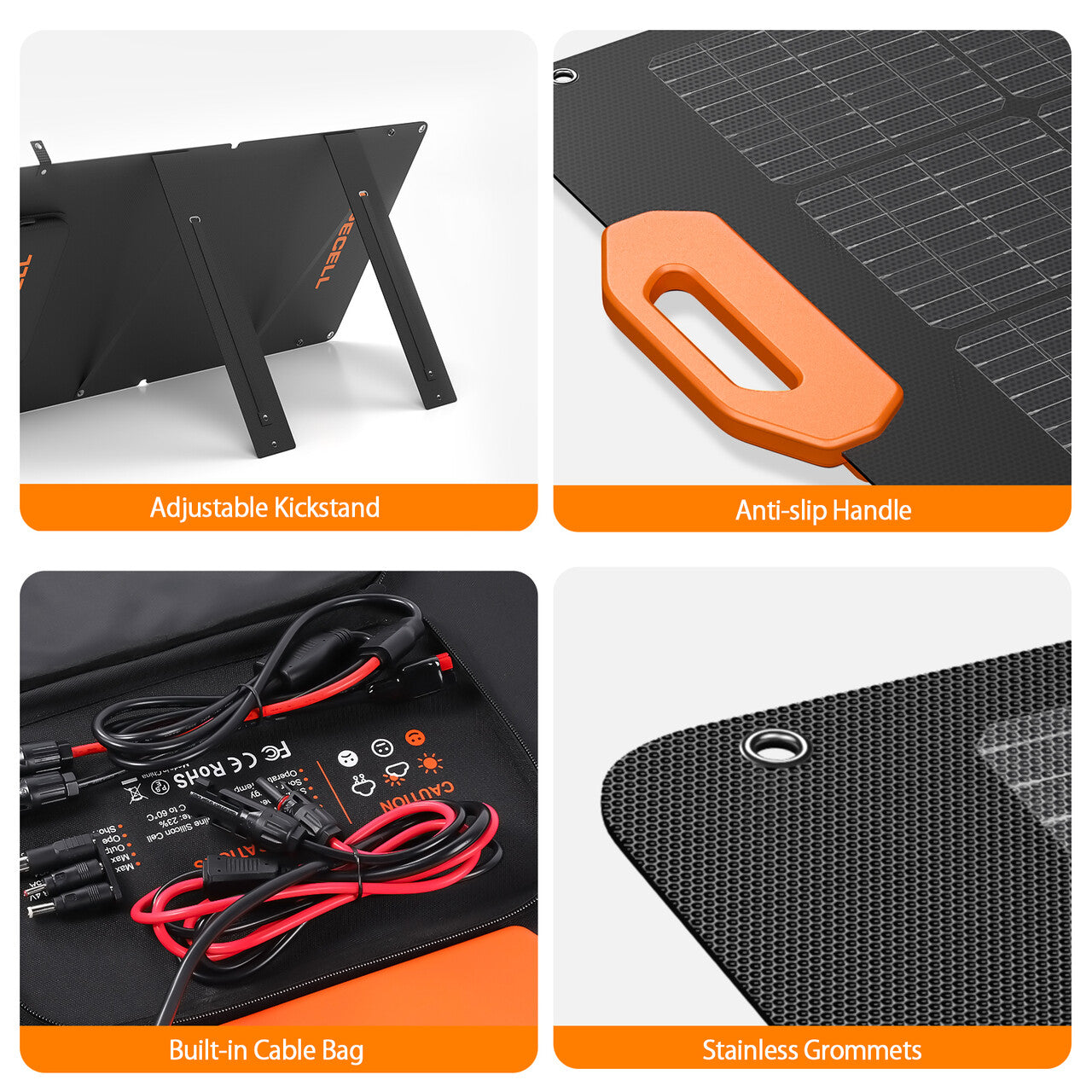

Adjustable Kickstands
The angle of the solar panel can be adjusted from 35°- 55° so that the solar panel can maximise sunlight absorption and gain more power.
Weather Resistance
Can be used all year round (-14°F to 140°F). Built-in pouch holds accessories and protects power ports from rain or dust.
Product Specification
【Specification】
|

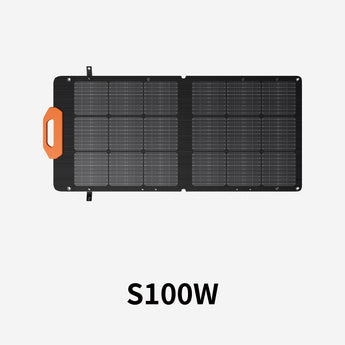

Model
|
S100
|
|
Solar Panel
|
Monocrystalline Silicon Cell
|
|
Material
|
600D Oxford Fabric
|
|
Surface Treatment
|
ETFE
|
|
Solar Energy Conversion Rate
|
23%
|
|
Peak Power
|
100W
|
|
Output Interface
|
MC4
|
|
Open Circuit Voltage
|
21.5V
|
|
Max Load Voltage
|
18.4V
|
|
Max Load Current
|
5.5A
|
|
Operating Temperature
|
-20℃ to 60℃
|
|
Net Weight
|
4.5kg±5%
|
|

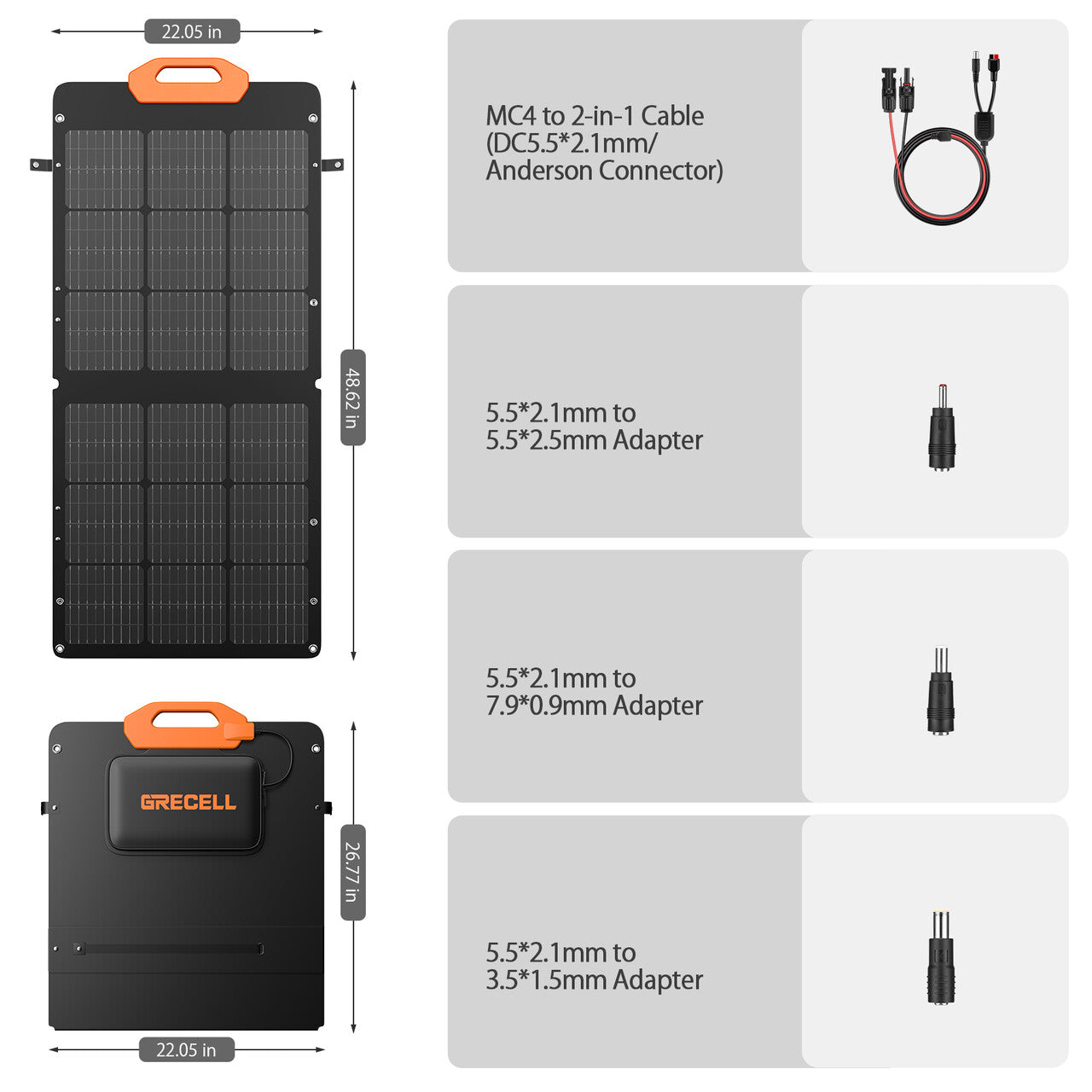

Unfolded Size
|
1235*560*5mm/48.62*22.05*0.2in
|
|
Folded Size
|
680*560*42mm/26.77*22.05*1.65in
|

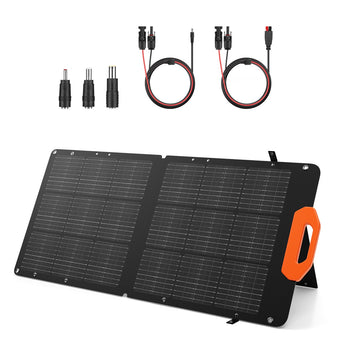

【What you get】
- 1* 100W Solar Panel
- 1* MC-4 to Anderson Cable
- 1* MC-4 to DC 5.5*2.1mm Cable
- 1* DC 5.5*2.5mm Adapter
- 1* DC 7.9*0.9/8mm Adapter
- 1* DC 3.5*1.5mm Adapter
How to Build the Series or Parallel Connection?
A single 100W solar panel is great for small device charging. With a professional parallel connector, you can also parallel 2 GRECELL100W solar panels to get more output power to recharge the high-capacity power stations faster.
The solar panel is equipped with PV-rated, output MC-4 cables. The Positive connector is a male connector and the negative connector is a female connector, these wires by themselves are rated for series connections.
When the solar panels are connected in series (+ connected to -, + connected to-), the voltage is added; When the solar panels are connected in parallel (+ connected to +,-connected to -), the current is added.
