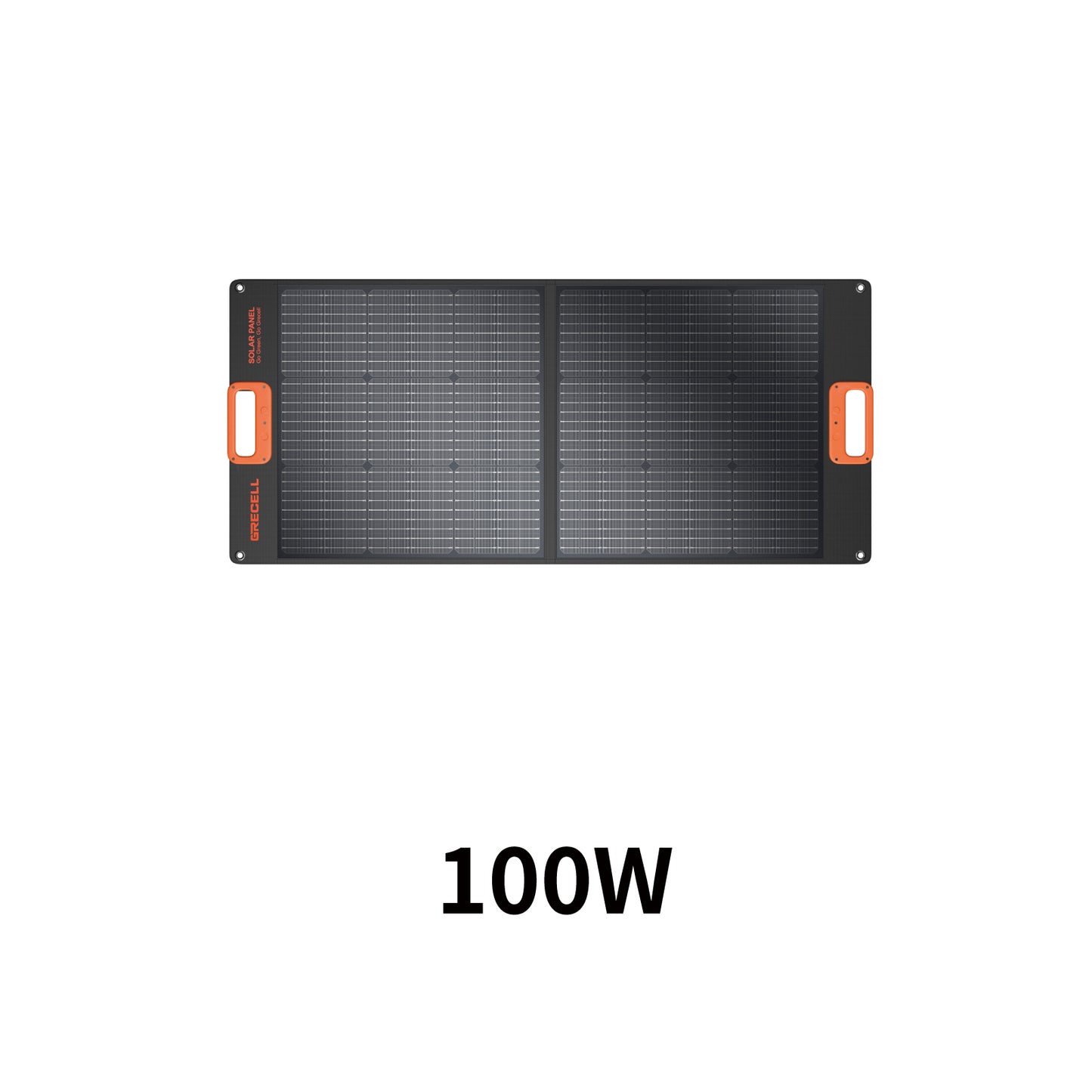

GRECELL 100W 20V Portable Foldable Solar Panel for Power Station Generator
GRECELL 100W Portable Solar Panel is a small size, foldable design, reliable solar charger with an easy-carry TPE rubber handle and two adjustable kickstands, which made it suited for applications that require a smaller footprint.
Once unfolded, two incorporated kickstands allow for easy positioning on any flat surface to give you instant charge from sunlight. Reinforced grommets provide additional mounting and tie-down capabilities, they can hang on your RV or tent. When folded, it looks like a briefcase easy to transport, and won't take up much room.
SMART CHARGING TECHNOLOGY--How to Build the Series or Parallel Connection?
100W solar panel supports series and parallel connections and you can expand your solar panel system to meet every need. Get up to double the power output by pairing your solar panel with another one to shorten charging times for portable power stations. Pairing panels is easy with the included MC4 Y connecting cable.
The solar panel is equipped with PV-rated, output MC-4 cables. The Positive connector is a male connector and the negative connector is a female connector, these wires by themselves are rated for series connections.
When the solar panels are connected in series (+ connected to -, + connected to-), the voltage is added;
when the solar panels are connected in parallel (+ connected to +,-connected to -), the current is added.
With up to 23.7% high efficiency monocrystalline solar cells, you will get greater power efficiency than polycrystalline solar panels. The solar battery charger is made from durable waterproof Oxford cloth and protected by a highly durable layer of lamination enhancing the cell performance and extending the lifespan of the 20v camping solar panel. Dust resistant, high temperature resistant, ideal for outdoor activities such as camping, hiking, picnics, caravan, RV, car, boat, and unexpected power outages.
5 Port Outputs Meet Most of Your Demands
MC-4 to Anderson Cable for Jackery Explorer 1000, ROCKPALS 300W, Ecoflow, and other solar generators.
MC-4 to DC 5.5*2.1mm Cable for Rockpals 250W/350W/500W, FlashFish 200W/300W, PAXCESS ROCKMAN 200/300W/500W, PRYMAX 300W/SinKeu HP100 portable generator.
DC 5.5*2.5mm Adapter for Suaoki 400wh portable generator, GRECELL 300W power station
DC 7.9*0.9/8mm Adapter for Jackery Explorer 160/240/300/500/1000, Goal Zero Yeti 160/240/300, BALDR 200/330W, Anker 521 Power Station,BLUETTI EB 240.
DC 3.5*1.5mm Adapter for Suaoki S270, ENKEEO S155, Paxcess 100W, Aiper 150W, JOYZIS, MARBERO portable generator.
You can also buy an MC-4 to charge controller cable, a charge controller, a charge controller to Alligator clip cable separately, connecting them with our Solar Panel to provide endless power for 12-volt batteries (AGM, LiFePo4, lead-acid, gel, lithium, deep cycle batteries) of cars, boats, ships, trailers, and RVs.
Unique Magnetic Design
Ideal for Outdoor Activities
Take Wherever You Go
Specifications
|
Model Number |
SP-100 |
|
Material |
Monocrystalline Silicon Cell |
|
Connector Type |
MC4 |
|
Cell Efficiency |
23.50% |
|
Maximum Power |
100W |
|
Power Voltage |
20V |
|
Power Current |
5A |
|
Short Circuit Current |
5.25 A |
|
Open Circuit Voltage |
23.85V |
|
Storage Temperature |
-50°F to 95°F(10℃ to 35℃) |
|
Operating Temperature |
-4°F to 140°F(-20℃ to 60℃) |
|
Folded Dimensions |
(640*536*65)±5mm / 25.2*21.1*2.5 inches |
|
Unfolded Dimensions |
(1284*536*5)±5mm / 50.55*21.1*0.2 inches |
|
Weight |
4.47±0.5kg/9.85lbs |

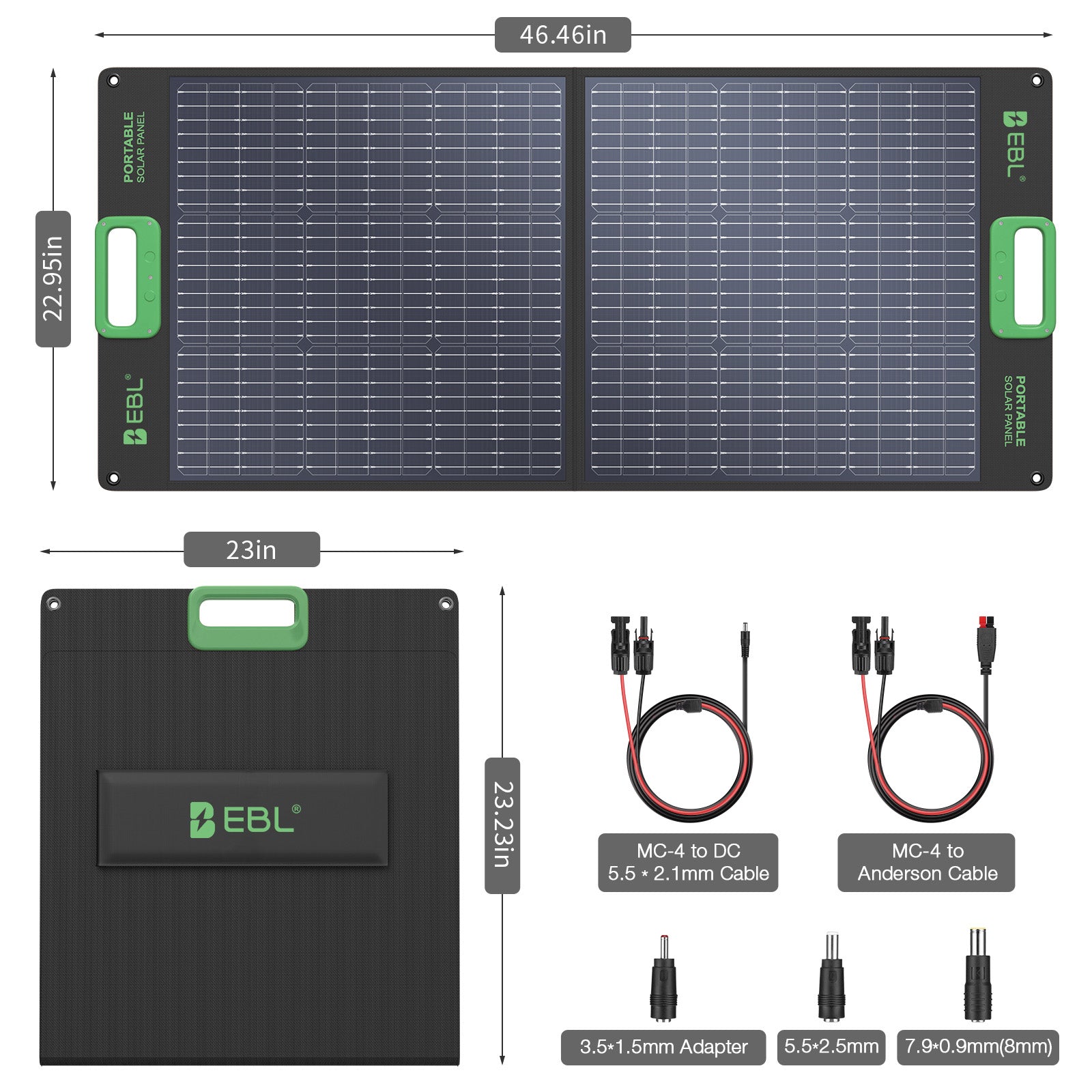

What's in the box
- 1 x 100W 20V Foldable Solar Panel
- 1 x MC-4 to Anderson Cable
- 1 x MC-4 to DC 5.5*2.1mm Cable
- 1 x DC5.5*2.1mm to 5.5*2.5mm Adapter
- 1 x DC5.5*2.1mm to 7.9*0.9mm Adapter
- 1 x DC5.5*2.1mm to 3.5*1.5mm Adapter
- 1 x User Manual
Want to buy one with a fast charger? See here：
Q1: Why Doesn’t My Solar Panel Reach Its Rated 100W?
The specifications provided were determined in a laboratory setting that has constant and controlled conditions. When a solar panel is actually being used, it is normal that the actual power does not reach the rated power. Solar panel efficiency is affected by many factors. Below are the factors that may affect the actual power output: Sunlight Intensity, Panel Surface Temperature, Sunlight Exposure Angle(90-degree), the Input limit of the device being charged, and Other Interferents like tree/cloud shadows, foreign objects, dust, or other sticky substances, etc. Please try to test your solar panel under full sunlight, cloudy weather may affect its normal working power, and make sure there is nothing shadow cast on the panel.
Faulty state: The product may be faulty if there is no power or the power is much less than the rated data if the above conditions are all satisfied.
Q2: How to Clean the Solar Panel Surface and Store It?
Do not place it under the rain, or soak it in water for a long time(Note: The junction port is not waterproof, please keep it dry). Use a soft cloth to remove the dust and dirt on the surface. Then use a damp cloth to wipe the surface of the solar panel to remove any remaining dust or dirt. Any debris should be removed as soon as possible to avoid a reduction in performance.
Q3: Are There Any Precautions for Using GRECELL 100W Portable Solar Panel?
Please check the model, size, voltage, and power of your original adapter to ensure compatibility before purchasing the product.
Please check whether the output voltage of the solar panel (12V-20V) is in the range of the input voltage of your power station.
Please do not press the solar panel with heavy objects, or it will damage the chips inside.
