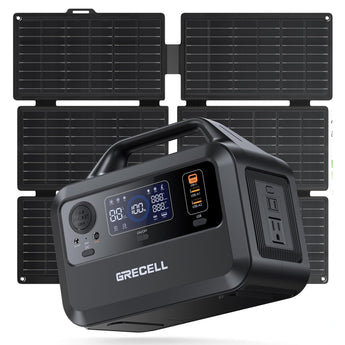

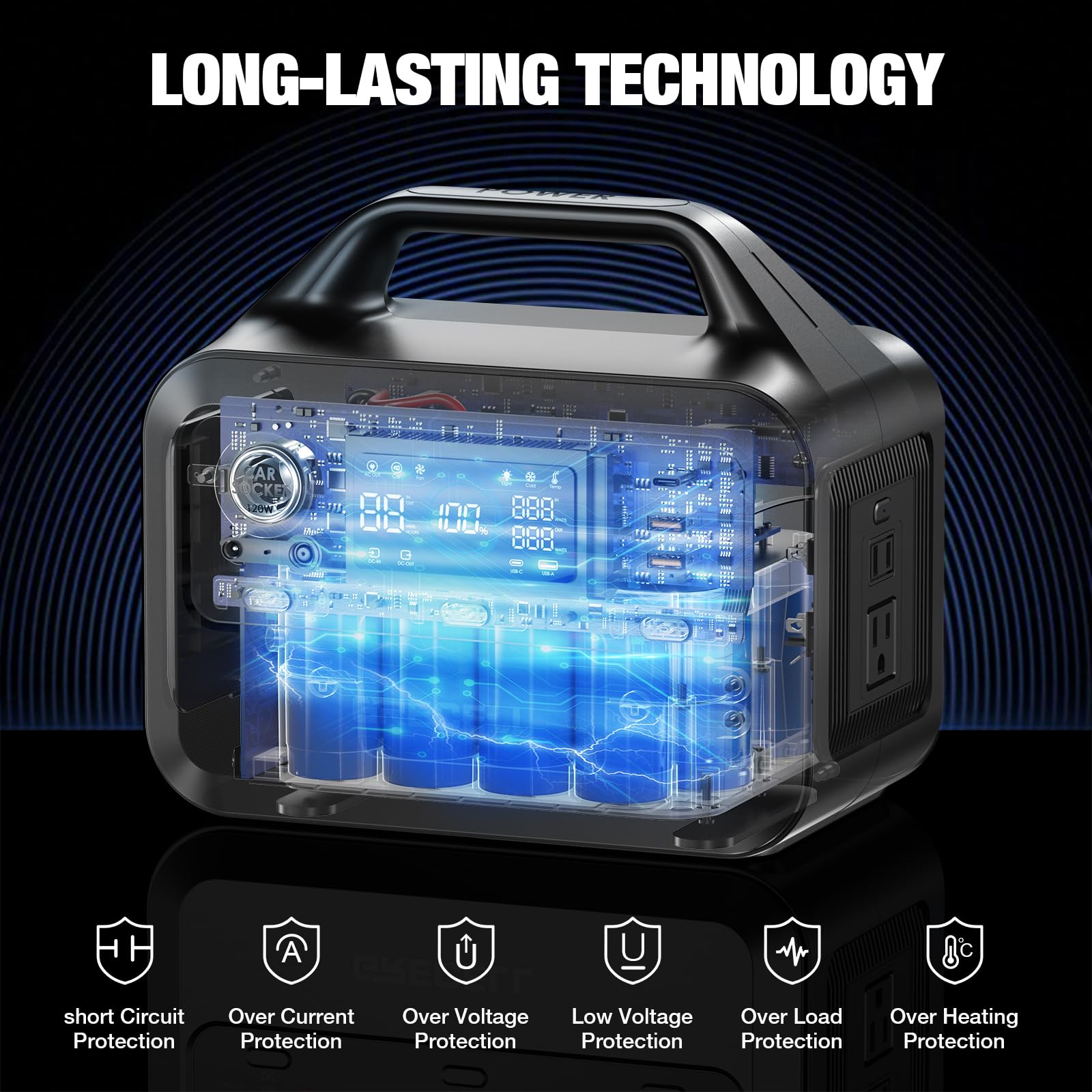

【Long-lasting Performance】

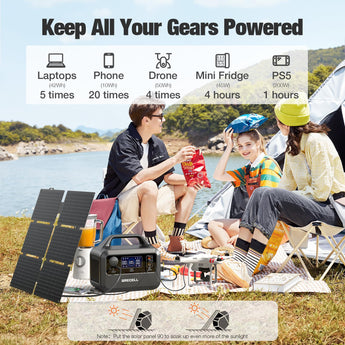

Built to last for over 10 years with a durable LiFePO4 battery, the Solar Generator 40W 2024 New Version offers a reliable on-the-go power source, with over 3,000 charge cycles. Weighing only 9.92 Lbs, boasting a substantial 230Wh capacity, it ensures connectivity wherever you roam, and effortlessly charges daily essentials with a 300W AC output.

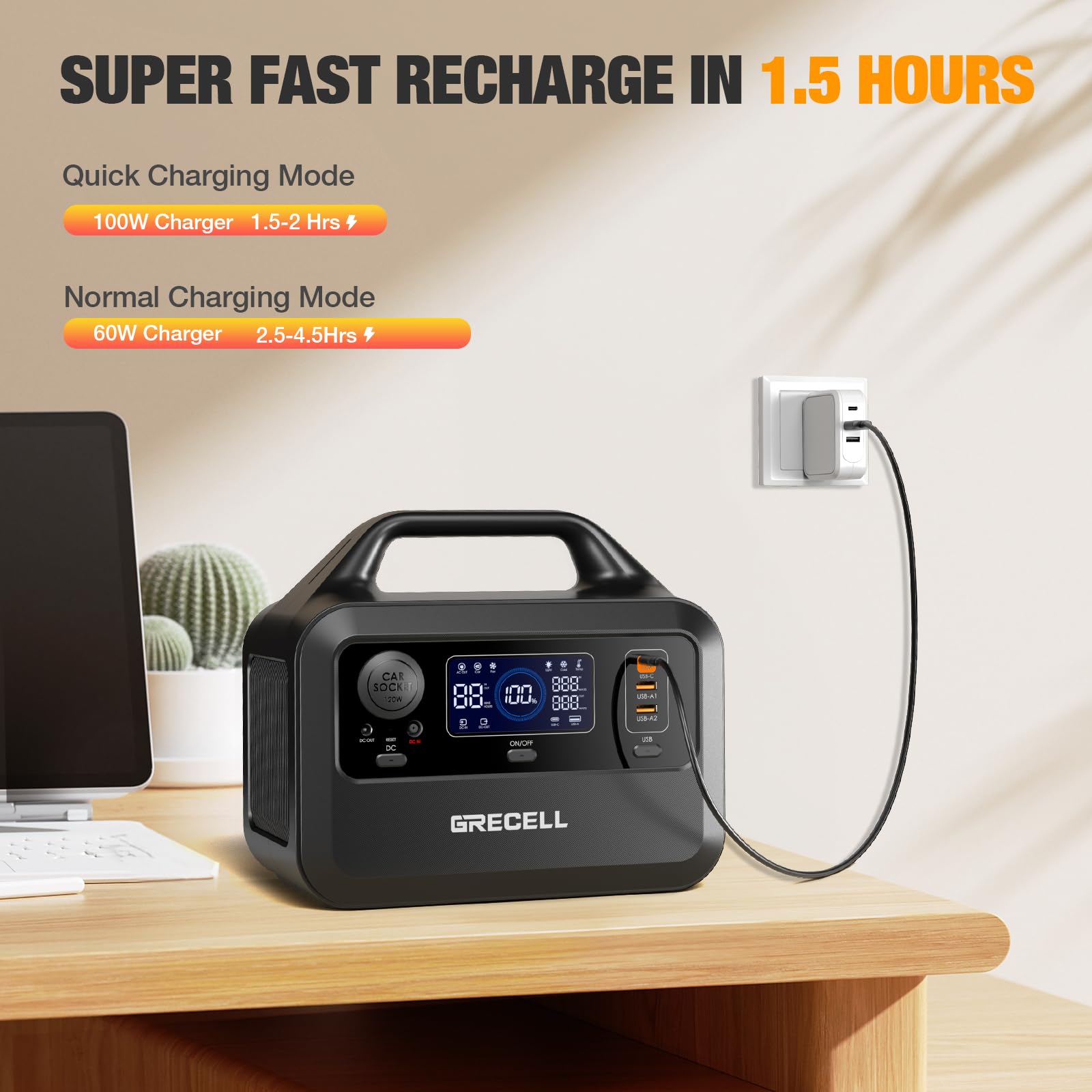

【Versatile Charging Options】
Delivering convenient 1.5-hour fast charging, the Portable Power Station 300W is fully charged in just 1 hour. Recharging from 0% to 100% under 4.5 hours using an AC wall outlet, further ensures extended battery lifespan. Harness rapid solar charging when living off the grid, and achieve a full charge in 5 hours, with 40W solar input.
【Solar Powered Generator with 7 Outputs 】
This portable solar generator for camping features with 7 outlets. 2x110V AC outlet to charge appliances within 300W(600W Peak) like tablet, laptop, fan, lights, etc; USBA1/A2+Type-C (5V/6A), 1 x DC 14V output quick charge for your phones, drones, iPad, GPS, MP3, camera, etc; 1x Cigarette Lighter output (10-14.2V/120W Max) for car vacuum, car air fan, etc.

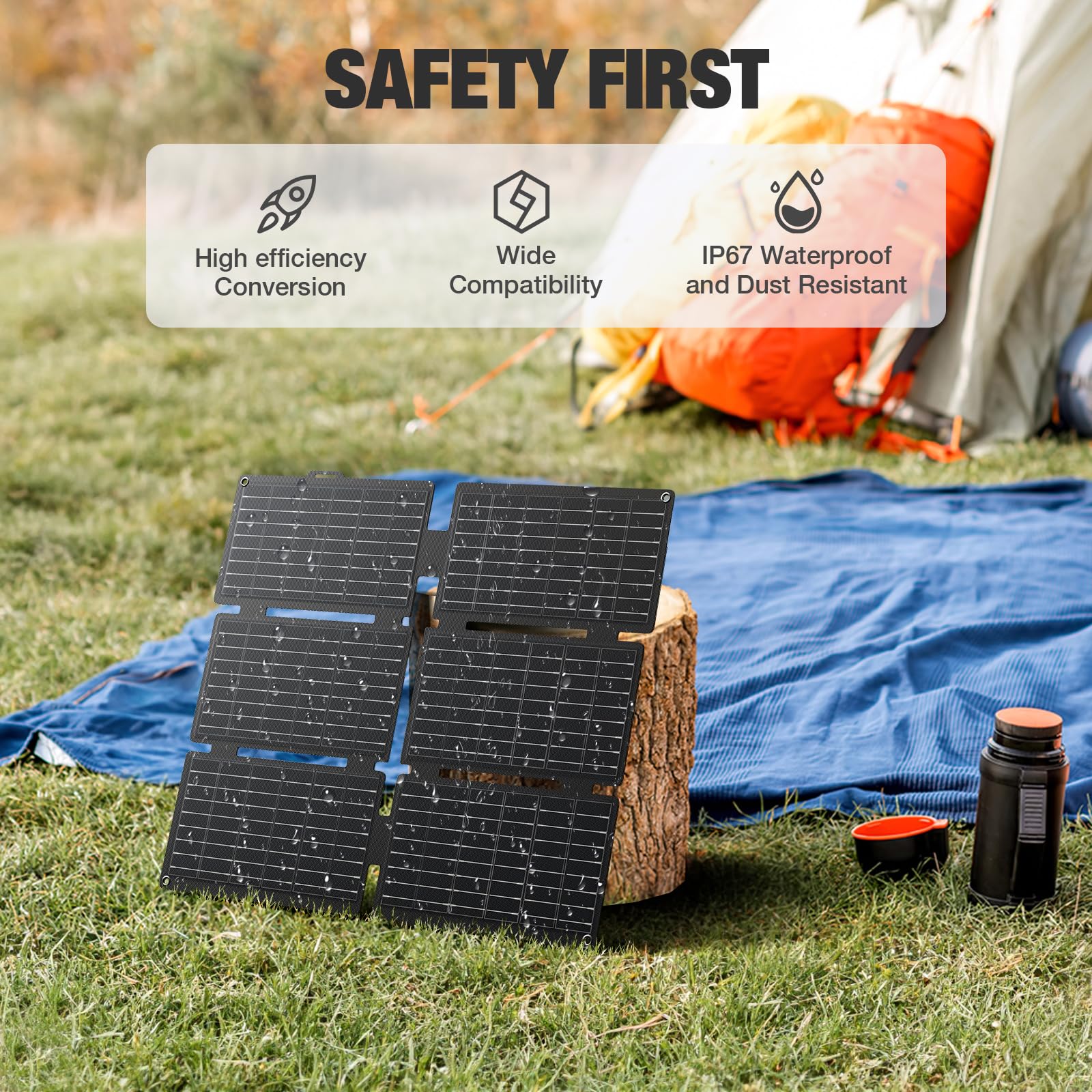

【Solar Panel Features】
The portable charging station attached to the solar generator is portable and foldable(like the same size as 13in laptop),weight: 2.29lbs; fold size: 11.97*7.12*1.7 inch; unfold size: 20.69*23.81*0.7 inch. it brings about versatile options of charging and recharging. This solar panel is equipped with 1 DC output port.

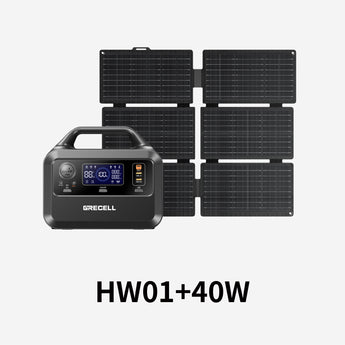

Specification of GRECELL HW01
|
Brand
|
GRECELL
|
Model No.
|
HW01
|
|
Rated Capacity
|
230.4Wh
|
Battery Type
|
LiFePO4
|
|
Rated Output Power
|
300W
|
Peak Output Power
|
600W
|
|
Recharging Input
|
11V~24V
|
Recharging Input Power
|
PD 100W+DC100W,200W(Max)
|
|
Type-C Input
|
5V/9V/12V/15V⎓3A,20V⎓5A,
100W(Max)
|
Type-C Output
|
5V/9V/12V/15V⎓3A, 20V⎓5A
|
|
AC Input
|
100~240V(50Hz/60Hz)
|
AC Output
|
110V~60Hz,300W(Max)
|
|
DC Adapter
Input
|
11V~24V⎓5A,100W(Max)
|
DC Adapter Output
|
10~14.2V,120W(Max)
|
|
Solar Charge Input
|
11V~24V⎓5A,100W(Max)
|
Cigarette Lighter Output
|
10~14.2V,120W(Max)
|
|
USB-A1 Output
|
4.5V⎓5A,5V⎓4.5A,
|
USB-A2 Output
|
5V⎓3A,9V⎓2A
|
|
USB-A1&A2 Output
|
5V⎓6A
|
|
|
|
Recharging Temp
|
32 to 113℉ (0 to 45℃)
|
Discharging Temp
|
-4 to 113℉(-20 to 45℃)
|
|
Product Size
|
244 x 153 x 213mm
|
Net Weight
|
about 3.6kg
|
|
LED Lighting
|
5W Max + SOS
|
Output Waveform
|
Pure Sine Wave
|

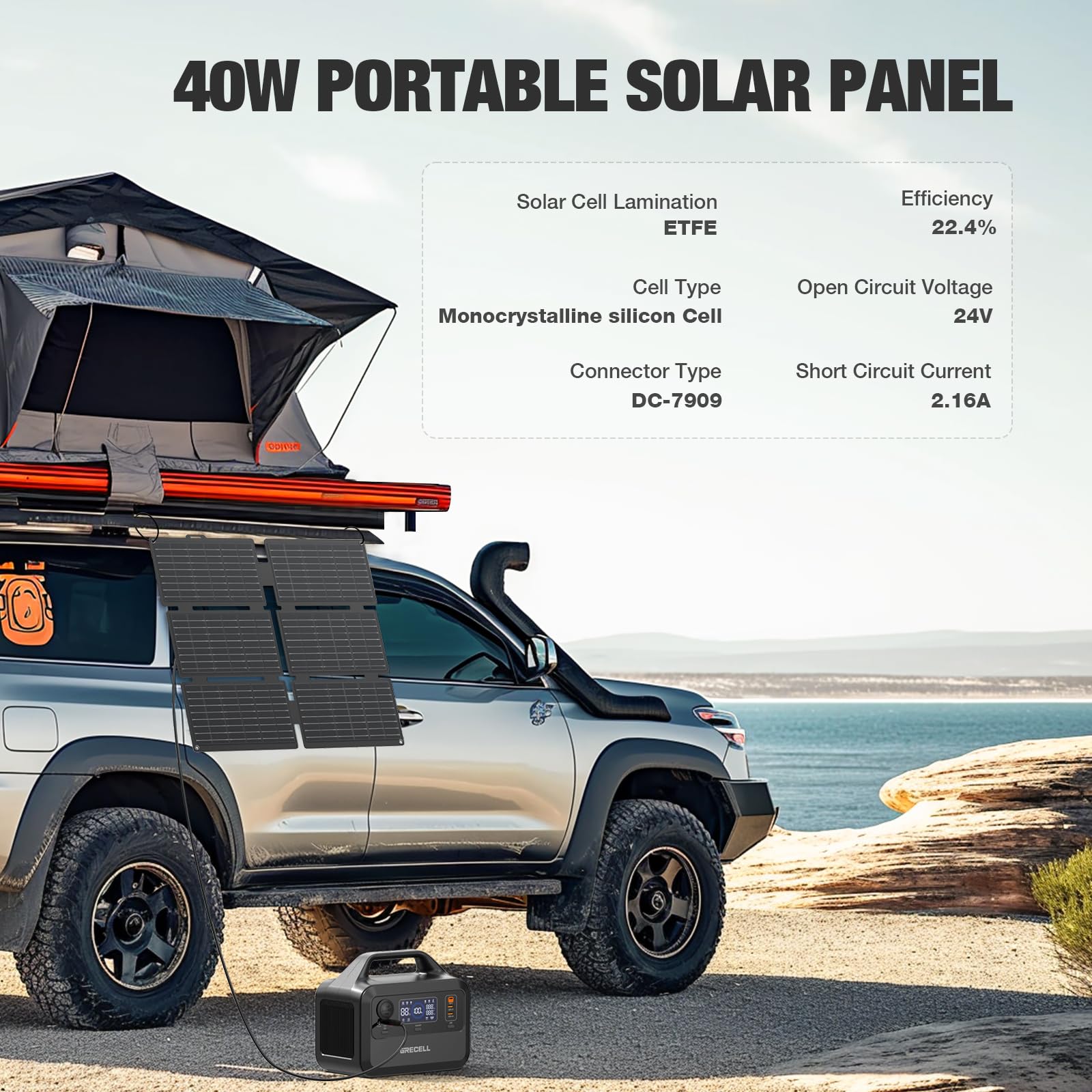

Specifications of GRECELL 40W
| Model Number | ED-40A |
|---|---|
| Open Circuit Voltage (Voc) | 24V ±5% |
| Operating Voltage (Vmp) | 20V ±5% |
| Short Circuit Current (Isc) | 2.16A ±5% |
| Operating Current (Imp) | 2A ±5% |
| Power (Pm) | 40W ±5% |
| Conversion Efficiency (EFF) | Cell efficiency ≥23% |
| Solar Cell Material (Cell) | Monocrystalline silicon |
| Lamination | ETFE |
| Output Cable | 20AWG, 4.92 ft, DC7909 |
| Unfolded Size | 20.63 × 23.82 × 0.59 in ±5% |
| Folded Size | 11.93 × 7.13 × 1.77 in ±5% |
| Net Weight | 2.29 lb ±5% |
| Operating Temperature | 14℉ ～ 158℉ |
What You Get
- 1* GRECELL Solar Generator 300W
- 1* 40W Mini Solar Panel
- 1* User Manual,
- 1* AC Cable
- 1* MC4-7909 Connector Cable,
- 1* 12V Car Charger Cable
(Note: The Portable Power Station is also compatible with 100W or 200W solar panels.)
