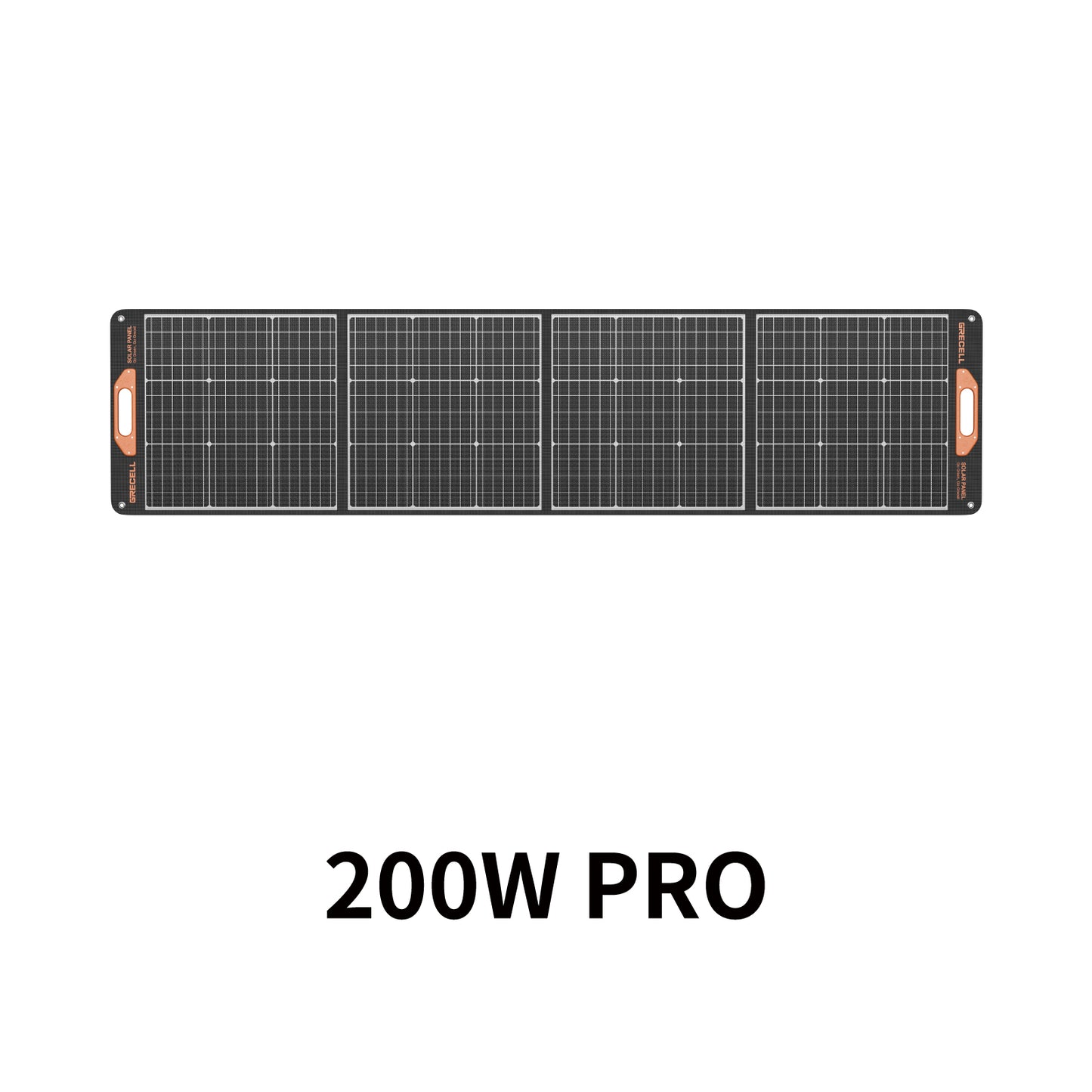

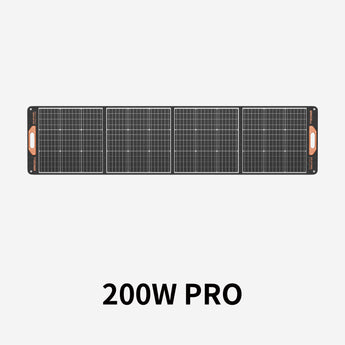

GRECELL 200W PRO Portable Solar Panel

200W PRO Portable Solar Panel for Power Station Generator, 12V/24V Flexible Foldable Solar Panel Kit Lightweight High Efficiency Solar Charger Backup Power for Outdoor Camping Caravans Caravans Off-gridFLEXIBLE & DURABLE

Made with advanced laminated technology and long-lasting ultra-light ETFE material on the surface, can be bent at a certain angle without damage, making it more flexible, durable,weather-resistance, and scratch-resistant than other ordinary PET films and extending its' lifespan more than 2 years. It is IP65 water-resistant that will protect from water splashing (Do not place it under the rain, or soak it in water).

WIDELY COMPATIBLE

GRECELL 200W solar panel uses an MC-4 connector and 4 connectors(DC7909/8, XT60, Aviation Connector, Anderson)which are suitable for most solar generators on the market, especially the bigger ones, such as Jackery/Ecoflow/Anker/Rockpals/Bluetti power station, all GRECELL generator, etc. With your controller(not included) and alligator clip(not included), it can also charge for the 12V batteries, such as the battery of RV/car/boat, Lifepo4, lithium, AGM, lead-acid, GEL, etc.

PORTABLE & SUPER SLIM

With a folded size of 24.8*22.05*1.77 inches and a lighted weight of only 11.35lbs, the GRECELL UB200 is 30+% lighter than other 200W solar panels and more portable with one hand. With super slim unfolded thickness:0.98inch, it will not take up much space when stored or used. 4 adjustable kickstands, 4 metal reinforced mounting holes to help you fold/hold/hook it up anywhere. Tips: For best results, we recommend using GRECELL solar panels with GRECELL solar generators.

HASSLE-FREE RECONNECTING

This portable solar panel is designed with automatic optimization to reconnect as soon as sunlight returns after a charging interruption. Get 20% more energy harvesting than PWM controllers, MPPT controllers allow higher currents, and overcharge cut-off technology ensures ultra-reliable performance of this solar panel. In addition, the 200W solar panel supports series/parallel connections.

Specification

Solar panels	Monocrystalline silicon cells
Solar Energy Conversion Rate	23.5%
Peak power	200W
Output Interface	MC4
Open Circuit Voltage (VOC)	24±5%V
Short circuit current (ISC)	12.5±5%A
Maximum load voltage/current	20V/10A
Operating temperature	14°F to 158°F
Net weight	5.15 kg / 11.35 lbs
Expanded size	93.3122.050.98 inches
Folded size	24.822.051.77 inches
Laminated	Tetrafluoroethylene

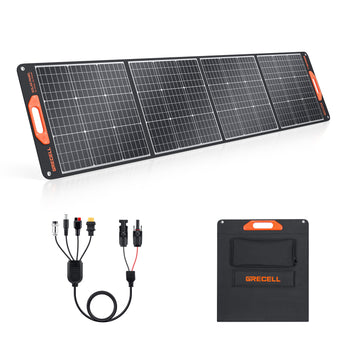

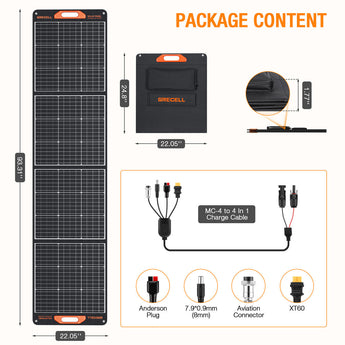

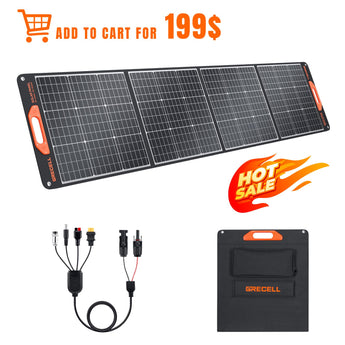

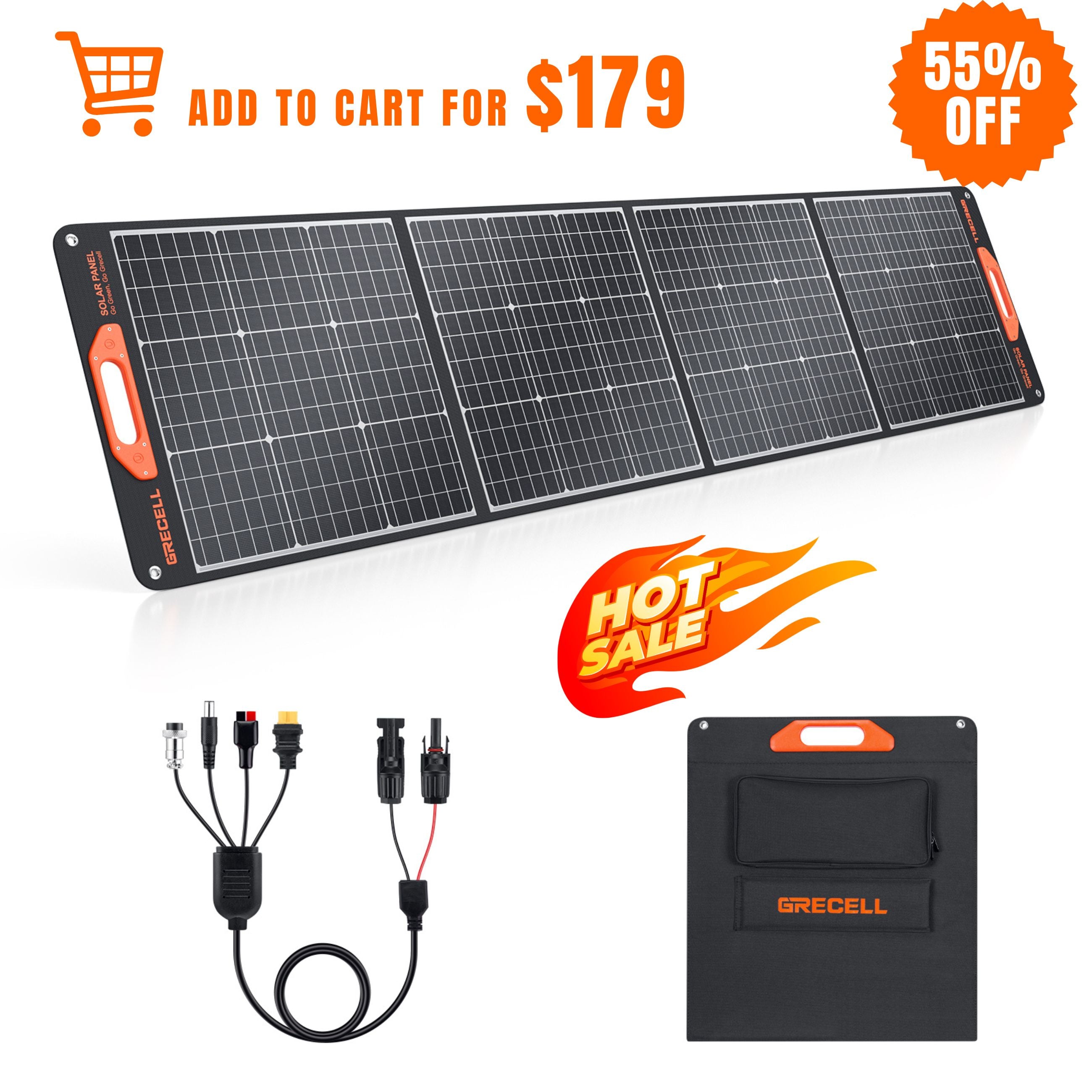

What's in the box

1 x MC-4 to 4 in 1 Charge Cable (XT60/30A Anderson/ DC 79*09mm/M16 Aviation Connector)
1 x 200W PRO Foldable Solar Panel
1 x User Manual

What are the differences between 200W solar panels and 200 PRO solar panels?

Both the 200W and 200W PRO solar panels are monocrystalline silicon cells.
The biggest difference between them is in the materials used. 200W solar panels are made of PET material, while 200W PRO solar panels are made of ETFE material.
ETFE can withstand high levels of thermal stress and chemical attack, far outperforming PET in this regard, and is more durable than PET, with a longer life span of at least 10 years, greater light transmission, a thickness as thin as less than 0.1 mm, and lighter weight.

GRCELL 200W Portable Solar Panel - The Optimal Choice for Your Outdoor Adventure

GRECELL 200W Flexible Solar Panel is uniquely designed: small-size, ultra-slim, lightweight, waterproof, portable, foldable, and bendable. It is a reliable solar charger with an easy-carry TPE rubber magnetic handle, four adjustable kickstands, four hanging holes, and a built-in cable bag. With up to 23.5% high-efficiency monocrystalline solar cells and premium ETFE films achieving a light penetration rate of 97%, you will get greater power efficiency than polycrystalline solar panels. The huge capacity made it suited for the bigger power station and 12V batteries. The advanced ETFE laminated technology and the long-lasting water-resistant 1200D Oxford cloth material make it a favorite for those with RVs, campers, and on the road, ideally suited for outdoor living or even unexpected power outages.

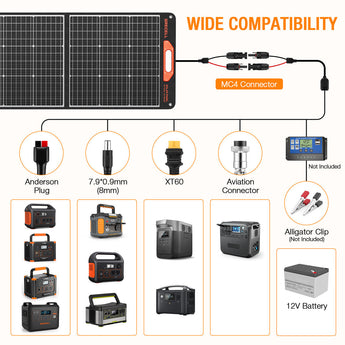

For 95% Portable Solar Generator/12V Batteries

4-in-1 Cable Meets Most of Your Demands

MC-4 to Anderson Connector for Jackery Explorer 1000, ROCKPALS 300W, Ecoflow, and other solar generators.

MC-4 to XT60 Connector for EF ECOFLOW RIVER Pro 720Wh/DELTA 1260Wh/Anker 757 PowerHouse 1229Wh

MC-4 to Aviation Connector for BLUETTI Portable Power Station AC200MAX 2048Wh

MC-4 to DC 7.9*0.9/8mm Connector for Jackery Explorer 160/240/300/500/1000, Goal Zero Yeti 160/240/300, BALDR 200/330W, Anker 521 Power Station,BLUETTI EB 240.

You can also buy a DC 7.9*0.9/8mm to DC 3.5*1.5mm/5.5*2.1mm/ 5.5*2.5mm Adapter to charge your power stations.

DC 3.5*1.5mm Adapter for Suaoki S270, ENKEEO S155, Paxcess 100W, Aiper 150W, JOYZIS, MARBERO portable generator.

MC-4 to DC 5.5*2.1mm Cable for Rockpals 250W/350W/500W, FlashFish 200W/300W, PAXCESS ROCKMAN 200/300W/500W, PRYMAX 300W/SinKeu HP100 portable generator.

DC 5.5*2.5mm Adapter for Suaoki 400wh portable generator, GRECELL 300W power station

You can also buy an MC-4 to charge controller cable, a charge controller, and a charge controller to Alligator clip cable separately, connecting them with our Solar Panel to provide endless power for 12-volt batteries (AGM, LiFePo4, lead-acid, gel, lithium, deep cycle batteries) of cars, boats, ships, trailers, and RVs.

Durable ETFE Laminate Surface

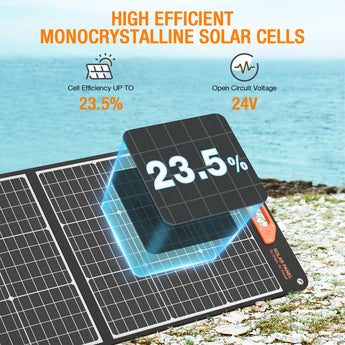

GRECELL UB200 is a 200-watt monocrystalline solar panel with high conversion efficiency, up to 23.5%, which is much higher than typical solar panels. With excellent 97% transparency, the GRECELL UB200 performs better than similarly-rated polycrystalline solar panels in low-light conditions and much higher than the market's average, converting more solar power into usable electrical energy and further reducing charging time.

Available All Year Round

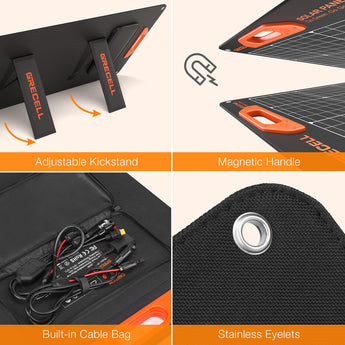

The solar panel is weather-resistant and waterproof, you can use it for 14 ℉ to 158 ℉, spring to winter. Different from other solar panels' buckle or velcro folding, our solar panel is designed with magnetic closure which is more convenient to use. 4 adjustable kickstands enable you to get the max sunlight. 4-fold design, 11.35 pounds of weight, and TPE rubber handle allow you to carry it easily when you do outdoor activities. The built-in bag can hold accessories and protect the power port from any rain or dust. The low-voltage system avoids electric shock hazards to ensure the safety of usage.

Semi-Flexible Solar Panel

The TPT back sheet can be curved to a certain degree arc, with 4 hanging holes, and mounted on RV, boat, cabin, tent, car, truck, trailer, or any other irregular surface, and charge devices freely when you are driving, fishing, climbing, hiking, and anywhere you go, providing endless power for your power station under the sun, without having to rely on a wall outlet or a power bank, and bringing you an unplugged lifestyle.

MC-4 Output For More Current

Our foldable portable solar panels are rugged, reliable, and easy to use. MC-4 Output can deliver 25A(max)current while the DC port only carries 10A, charging faster and safer with our advanced technologies. Thanks to the parallel function, you can charge your devices in a shorter time.

Multi-purpose Usage

Our panel can be used in most portable power stations and is very suitable for camping, hiking, picnics, RV travel, fishing, other outdoor activities, and works. Amazing outdoor activity power as an emergency power supply and home backup power supply to prevent accidental power failures, such as blackouts due to earthquakes, hail, snowstorms, and other natural disasters. Prepare for your outdoor and indoor green life.

Make a Bundle with Power station

1. Unfold the solar panel and place it under direct sunlight. 2. Connect the solar panel to your devices. 3. Keep your device cool while charging. Place it under the solar panel, or in the shade to avoid overheating. The GRECELL Solar Panel can be paired with an GRECELL power station to take advantage of the advanced MPPT solar charge controller, which detects current and voltage in real time.

SMART CHARGING TECHNOLOGY--How to Build the Series or Parallel Connection?

A single 200W solar panel is great for small and medium devices charging. With a professional parallel connector, you can also parallel 2 GRECELL 200W solar panels to get more output power to recharge the large-capacity power stations faster.

The solar panel is equipped with PV-rated, output MC-4 cables. The Positive connector is a male connector and the negative connector is a female connector, these wires by themselves are rated for series connections.

When the solar panels are connected in series (+ connected to -, + connected to -), the voltage is added;

when the solar panels are connected in parallel (+ connected to +,-connected to -), the current is added.

Note: Parallel connection, it need to purchase extra MC-4 Y connectors, (Negative to Negative, Positive to Positive)

GRECELL lightweight Flexible Solar Panel 200W

Frequently asked questions

Q1: Why Doesn’t My UB-200 Solar Panel Reach Its Rated 200W?

The specifications provided were determined in a laboratory setting that has constant and controlled conditions. When a solar panel is actually being used, it is normal that the actual power does not reach the rated power. Solar panel efficiency is affected by many factors. Below are the factors that may affect the actual power output: Sunlight Intensity, Panel Surface Temperature, Sunlight Exposure Angle(90-degree), the Input limit of the device being charged, and Other Interferents like tree/cloud shadows, foreign objects, dust, or other sticky substances, etc. Please try to test your solar panel under full sunlight, cloudy weather may affect its normal working power, and make sure there is nothing shadow cast on the panel.

Faulty state: The product may be faulty if there is no power or the power is much less than the rated data if the above conditions are all satisfied.

Q2: Is the GRECELL UB-200 Flexible solar panel waterproof?

It is IP65 waterproof that will protect from water splashing. Do not place it under the rain, or soak it in water for a long time(Note: The junction port is not waterproof, please keep it dry).

Q3: How To Clean the Solar Panel Surface and Store It?

Use a soft cloth to remove the dust and dirt on the surface. Then use a damp cloth to wipe the surface of the solar panel to remove any remaining dust or dirt. Any debris should be removed as soon as possible to avoid a reduction in performance.

Q4: Are There Any Precautions for Using GRECELL 200W Portable Solar Panel?

Please check the model, size, voltage, and power of your original adapter to ensure compatibility before purchasing the product.

Please check whether the output voltage of the solar panel (12V-24V) is in the range of the input voltage of your power station.

Please do not press the solar panel with heavy objects, or it will damage the chips inside.

The portable solar panel is not a device to store electrical energy. It is only used to convert sunlight directly into electricity and output it to your devices immediately!
