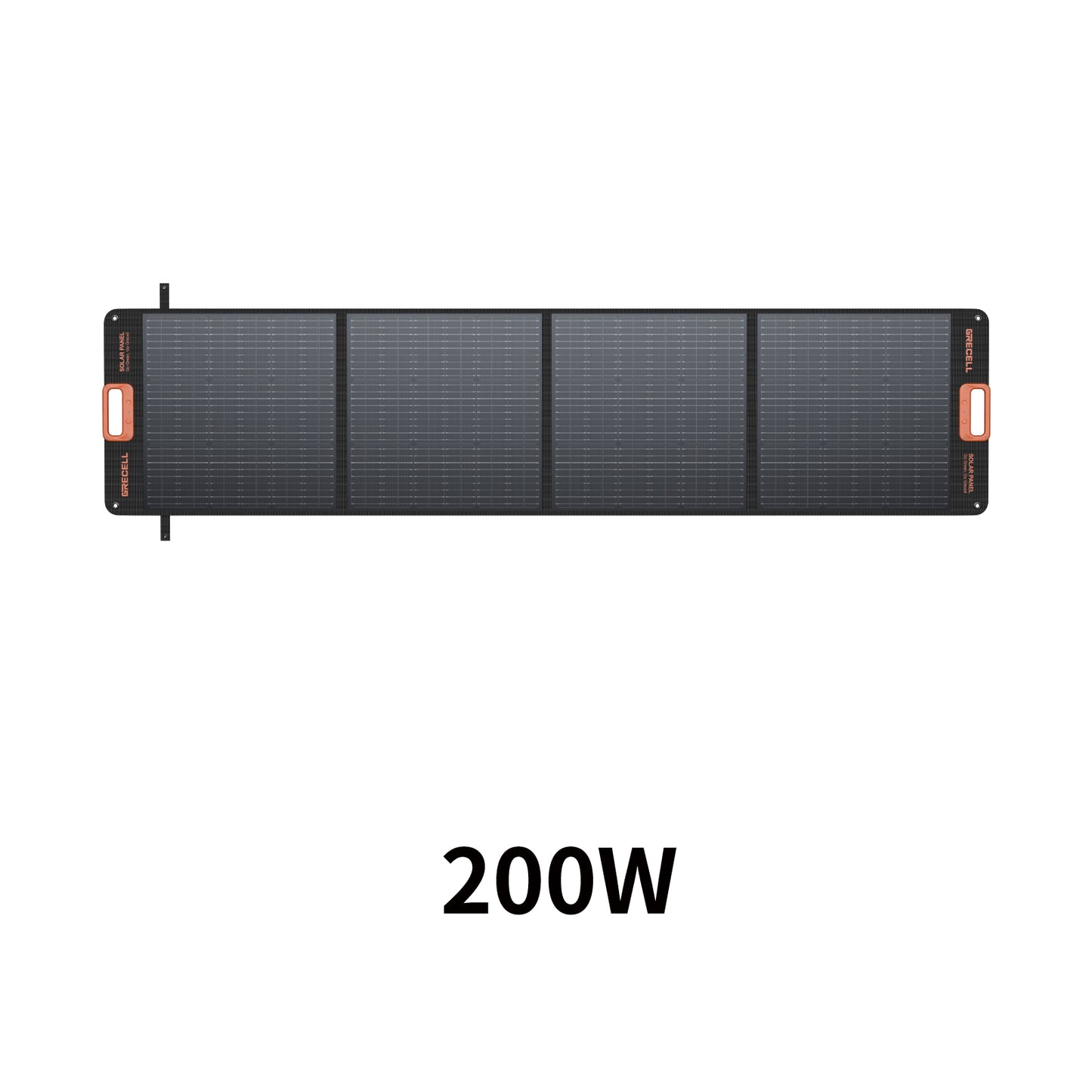

GRECELL 200W Portable Solar Panel for Power Station, Foldable Solar Charger with 4 Kickstands, IP65 Waterproof Solar Panel Kit w/ MC-4 DC XT60 Anderson Aviation Output for Outdoor RV Camper Blackout
COMPATIBLE WITH 95% OF POWER STATIONS
There is a built-in MC4 cable and a separate 4-in-1 cable, the versatile 200W solar panel is widely compatible with most solar generators on the market, working well with power stations of Jackery, EF Ecoflow, Bluetti, Anker, and others, especially great with the GRCELL solar generators. With a charging controller and alligator clip(NOT INCLUDED), you can also charge your 12V batteries, such as AGM, gel & lithium-ion.
WATERPROOF & DURABLE
Its advanced laminated technology, a heat-resistant dustproof and waterproof film on the surface, and 840D Oxford cloth outer, prevent damage of the cells due to moisture and sun and make it more durable, scratch-resistant, and moisture-proof. It is IP65 waterproof which will protect it from water splashing, and withstand a variety of weather conditions, making it ideal for outdoor adventure. (Do not place it under the rain, or soak it in water).
FOLDABLE & PORTABLE
This portable solar panel 200 Watts can be folded down to a quarter of its full size, folded size only 25.82x21.1x2.95inch, features a robust rubber handle for easy briefcase-style carrying, weight 17.94lb, easy to carry. We’ve also added two convenient front clips to prevent opening while carrying. When taking it camping, this foldable solar panel kit can save even more space in your vehicle! You're able to take this solar panel anywhere you need solar power.
Monocrystalline Silicon Cell
Open Circuit Voltage(VOC)
Short Circuit Current (ISC)
Max Load Voltage
Max Load Current
-20°C to 60°C
What's in the box
- 1 x MC-4 to 4 in 1 Charge Cable (XT60/30A Anderson/ DC 79*09mm/M16 Aviation Connector)
- 1 x 200W Foldable Solar Panel
- 1 x User Manual
What are the differences between 200W solar panels and 200 PRO solar panels?
Both the 200W and 200W PRO solar panels are monocrystalline silicon cells.
The biggest difference between them is in the materials used. 200W solar panels are made of PET material, while 200W PRO solar panels are made of ETFE material.
ETFE can withstand high levels of thermal stress and chemical attack, far outperforming PET in this regard, and is more durable than PET, with a longer life span of at least 10 years, greater light transmission, a thickness as thin as less than 0.1 mm, and lighter weight.
GRECELL 200W Foldable Solar Panel - Green Power Solution
GRECELL 200W Portable Solar Panel is uniquely designed: small-size, waterproof, portable, and foldable. It is a reliable solar charger with an easy-carry TPE rubber handle, four adjustable kickstands, four hanging holes, and a built-in cable bag. With up to 23.5% high-efficiency monocrystalline solar cells and premium films achieving a light penetration rate of 95%, you will get greater power efficiency than polycrystalline solar panels. The huge capacity made it suited for the bigger power station and 12V batteries. The advanced 6-layer laminated technology and the long-lasting water-resistant Oxford cloth material make it a favorite for those with RVs, campers, and on the road, ideally suited for outdoor living or even unexpected power outages. Freedom from loud gas generators, opt for silent and green solar power.
GRECELL 200W Foldable Solar Panel - Perfect Solution to Portable Power Station and 12V Batteries
Using 4-in-1 Cable with power station (sold separately) simultaneously, you can get unlimited power source.
MC-4 to Anderson Connector for Jackery Explorer 1000, ROCKPALS 300W, Ecoflow, and other solar generators.
MC-4 to XT60 Connector for EF ECOFLOW RIVER Pro 720Wh/DELTA 1260Wh/Anker 757 PowerHouse 1229Wh
MC-4 to Aviation Connector for BLUETTI Portable Power Station AC200MAX 2048Wh
MC-4 to DC 7.9*0.9/8mm Connector for Jackery Explorer 160/240/300/500/1000, Goal Zero Yeti 160/240/300, BALDR 200/330W, Anker 521 Power Station,BLUETTI EB 240.
You can also buy a DC 7.9*0.9/8mm to DC 3.5*1.5mm/5.5*2.1mm/ 5.5*2.5mm Adapter to charge your power stations.
DC 3.5*1.5mm Adapter for Suaoki S270, ENKEEO S155, Paxcess 100W, Aiper 150W, JOYZIS, MARBERO portable generator.
DC 5.5*2.1mm Adapter for Rockpals 250W/350W/500W, FlashFish 200W/300W, PAXCESS ROCKMAN 200/300W/500W, PRYMAX 300W/SinKeu HP100 portable generator.
DC 5.5*2.5mm Adapter for Suaoki 400wh portable generator, GRECELL 300W power station.
You can also buy an MC-4 to charge controller cable, a charge controller, and a charge controller to Alligator clip cable separately, connecting them with our Solar Panel to provide endless power for 12-volt batteries (AGM, LiFePo4, lead-acid, gel, lithium, deep cycle batteries) of cars, boats, ships, trailers, and RVs.
Efficient & Secure
Easy to Set up & Save Space
Durable & Stable
SMART CHARGING TECHNOLOGY-- Build the Series or Parallel Connection for More Efficient Solar Panel Charging
A single 200W solar panel is great for small and medium devices charging. With a professional parallel connector, you can also parallel 2 GRECELL 200W solar panels to get more output power to recharge the large-capacity power stations faster.
The solar panel is equipped with PV-rated, output MC-4 cables. The Positive connector is a male connector and the negative connector is a female connector, these wires by themselves are rated for series connections.
When the solar panels are connected in series (+ connected to -, + connected to -), the voltage is added;
when the solar panels are connected in parallel (+ connected to +,-connected to -), the current is added.
Note: Parallel connection, it needs to purchase extra MC-4 Y connectors (Negative to Negative, Positive to Positive).
When connecting two pieces in series or parallel, the voltage of both pieces must be the same. If it is not the same, it may lead to product failure.
Frequently asked questions
Q1: Why can My 200w Solar Panel Not Provide 200W Output Power?
Rated 200W is the optimal test result under ideal conditions. The values in sunlight will be slightly less than 200w because the output power is affected by many factors, such as temperature/sunlight intensity/panel angle with sunlight. There are also efficiency losses in charging mobile power stations. To get power as higher as possible, please use it under stronger sunlight / adjust the panel's right angle to the sun / avoid shadow.
Q2: Do I Need a Controller for Charging the Solar Power Station?
No, the portable power station generally has a built-in MPPT function, so there is no need to connect the controller early in the charging process.
Q3: How to Clean the Solar Panel Surface?
Please use a soft cloth to remove the dust and dirt on the surface.
Q4: How Many SP-200 Solar Panels do I Need to Charge the GRECELL 2000W Solar Generator?
We recommend 2~3 pieces of SP-200 for more efficient solar power generation and saving charging time.
Q5：What do I Need to Pay Attention to When Connecting Solar Panels?
When used with the controller, please connect the controller to the battery first, and then in the connection of solar panels.
The portable solar panel is not a device to store electrical energy. It is only used to convert sunlight directly into electricity and output it to your devices immediately.
The surface of the solar panel is waterproof while the junction port is not waterproof. Please do NOT immerse the folding panel solar in the water!
It's NOT recommended to use portable solar panels in rainy and humid environments, because only under sufficient sunlight can the solar panel's supply power to your devices quickly.
