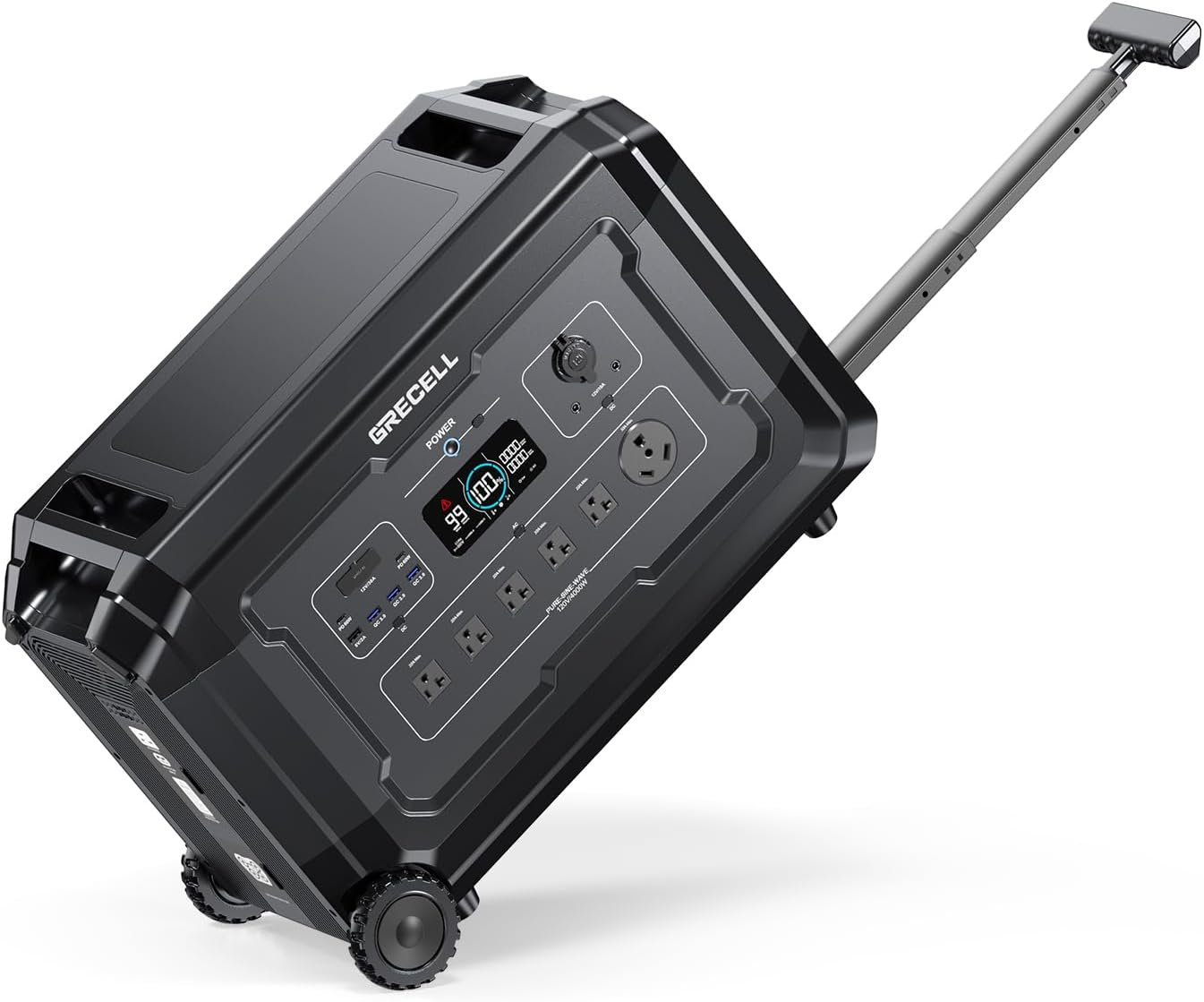

4000W Portable Power Station
The GRECELL 4000W Portable Power Station features a 5040Wh LiFePO4 battery, 6 AC outlets (7000W peak), and 16 total outlets to support most appliances. It charges fully in 1.5 hours and can expand to 10.08kWh with an extra battery. Equipped with <20ms EPS for reliable operation during power outages, it is ideal for home emergencies, RV camping, and off-grid activities, offering over 4000 charge cycles and a 10-year lifespan.
Ultra-Fast Charging
Fully recharge in 1.5 hours with 1800W AC cable and up to 2100W solar input. Max 3900W charging power, ideal for quick recharges during outages. Compatible with car charger or extra battery.
Expandable Power
Expand from 5.04kWh to 10.08kWh with an S5-BAT expansion battery(not included), providing extended power for typical household needs.
Reliable BMS System
Uses safe and stable LiFePO4 batteries with advanced eight-layer safety BMS. Offers protection against over-charge, over-discharge, over-voltage, over-current, short-circuit, and temperature fluctuations. Supports over 4000 charge/discharge cycles, lasting about 10 years.
Emergency Backup Power
Equipped with less than 20ms EPS for safe operation of sensitive devices during power failures. Ensures uninterrupted power for home emergencies, network equipment, and outdoor tasks.
Specification of Power Station
|
Model No.
|
S5
|
Battery Type
|
Lithium Iron Phosphate (LiFePo4)
|
|
Capacity
|
5040Wh/105Ah
|
AC Input | 90V-140V, 16A, 1800W Max |
|
PV Input
|
DC 12V-150V, 15A Max, 2100W Max
|
Car Charger Input | 12V-15V, 8A |
|
AC Outputs
|
6 x 4000W (7000W Peak), 100-120V~50Hz/60Hz
|
DC 5521 Outputs | 12V⎓10A (Each), 30A Max |
| USB-A Output | 5V⎓3.0A, 9V⎓2A, 12V⎓1.5A 18W | USB-C Outputs |
5V/ 9V/12V/15V/20V⎓3A , PD 60W
|
| Car Charger Output | Total 12V⎓10A | UPS switchover time | ≤20mS |
|
Overload Protection |
4100W~4200W | Storage Temp | 13°F-1140°F (-25°C-60℃) |
| Discharging Temp | 14°F-104°F (-10°C-40°C) | Charging Temp | 32°F to 104°F (0°C to 40°C) |
|
Dimensions
|
25.2*11.9*17.2in
|
Weight | 112.44Lbs/51kg |
What you get
(S5 - 5040Wh)
1*4000W Powerful Solar Generator
1*XT90 to Anderson Cable
1* Anderson Cable
1*Car Charger Cable
1*AC Charger
User Manual
(S5 + S5-BAT Expansion Battery - 10080Wh)
1*4000W Solar Generator
1* 5040Wh Extra Expansion Battery
1* Battery Packs Connecting Cable
1*XT90 to Anderson Cable
1*Car Charger Cable
1*Anderson Cable
1*AC Charger
User Manual
Which power station is compatible with S5-BAT Expansion Battery?
Only GRECELL 4000W Power Station S5 is compatible with the expansion battery. To connect S5 solar generator with the expansion battery by the included battery packs connecting cable.
Can I use S5-BAT Expansion Battery separately?
The expansion battery cannot be used separately. It must be connected to the GRECELL S5 power station 5040Wh to charge or discharge.
How long will S5+S5-BAT bundle power my device?
Working time (estimated) = 10080Wh * 0.85 / operating power of your device. (0.85 = Conversion Rate) Kindly note the actual working time may vary under different circumstances.
What should I do if I bought a bundle, but only received one product?
You may receive multiple packages from different carriers. Please wait for another three business days for other items to arrive.
Also note that due to system restrictions, we may not be able to send you tracking numbers for all products.
When charging a device, will the power in the external battery be used first?
Both the expansion battery and GRECELL power station will gradually equalize their power levels. When outputting power, a balanced discharge is achieved based on both devices' power levels. This setup is designed to maximize product lifespan.
